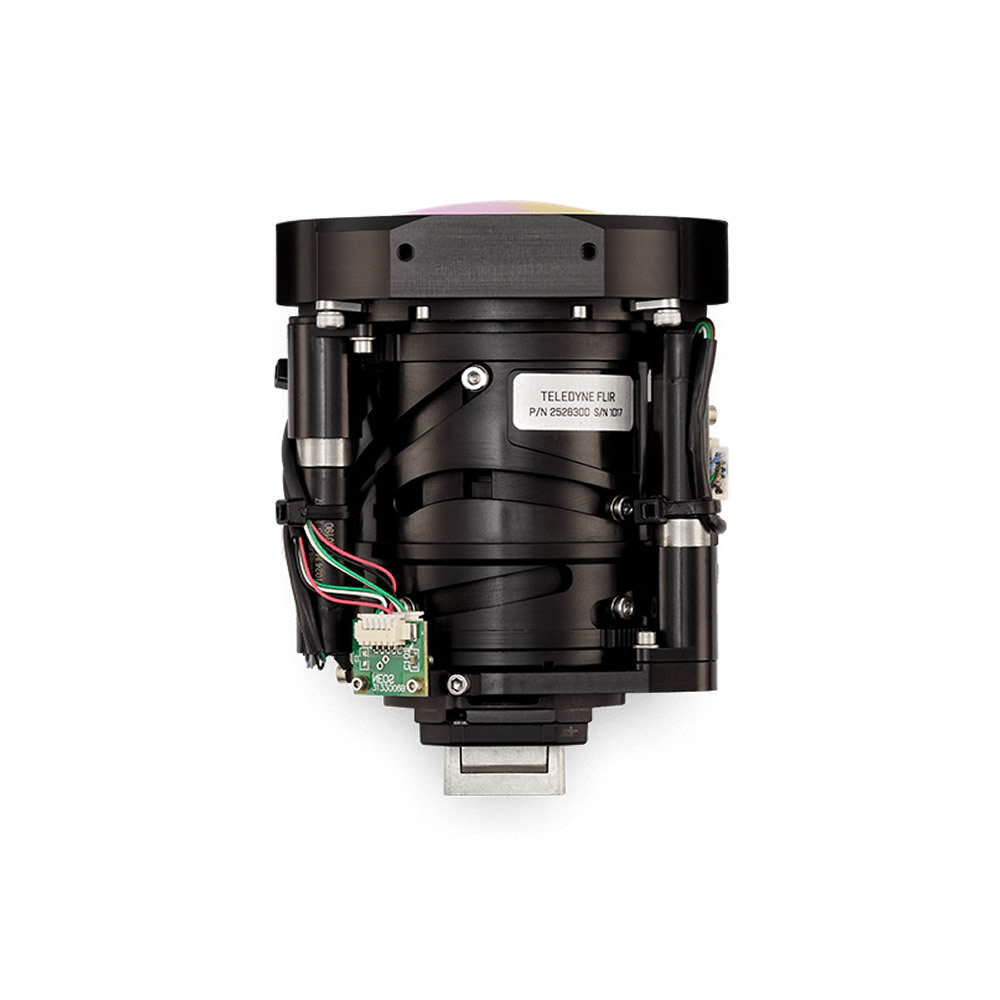

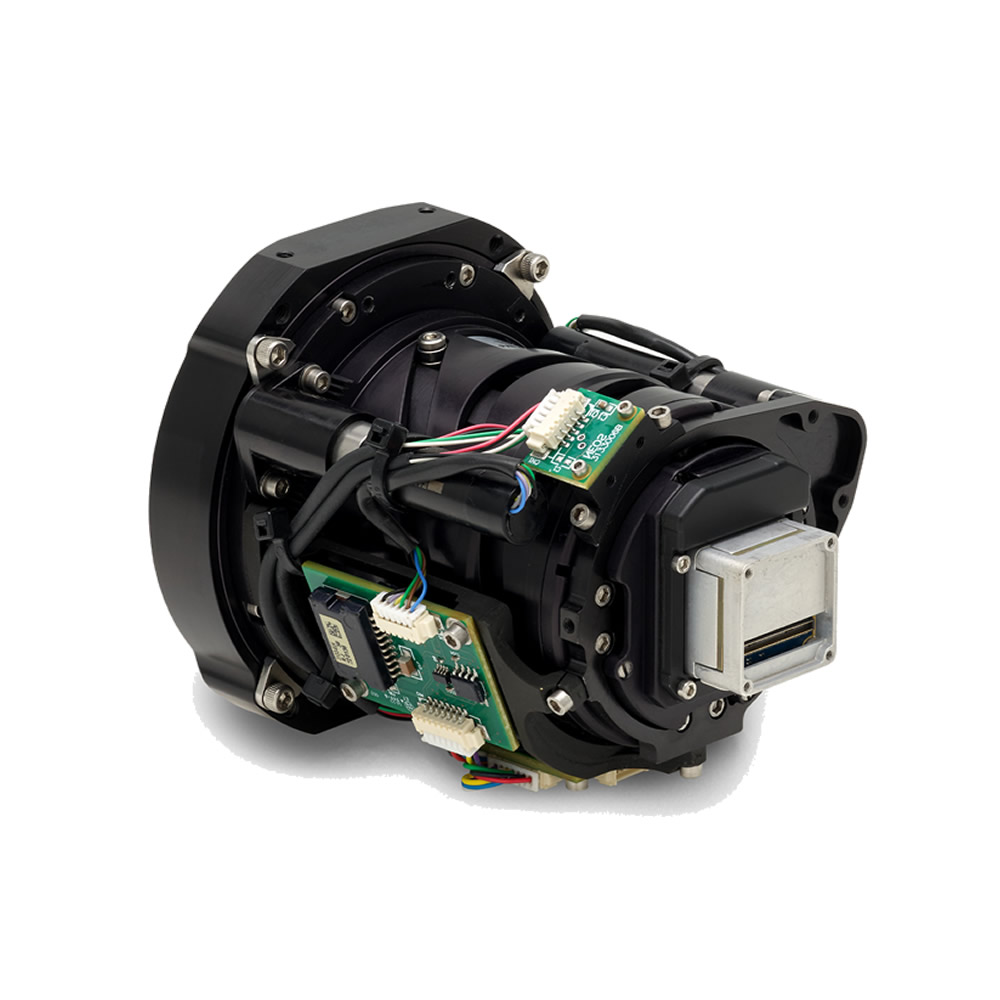

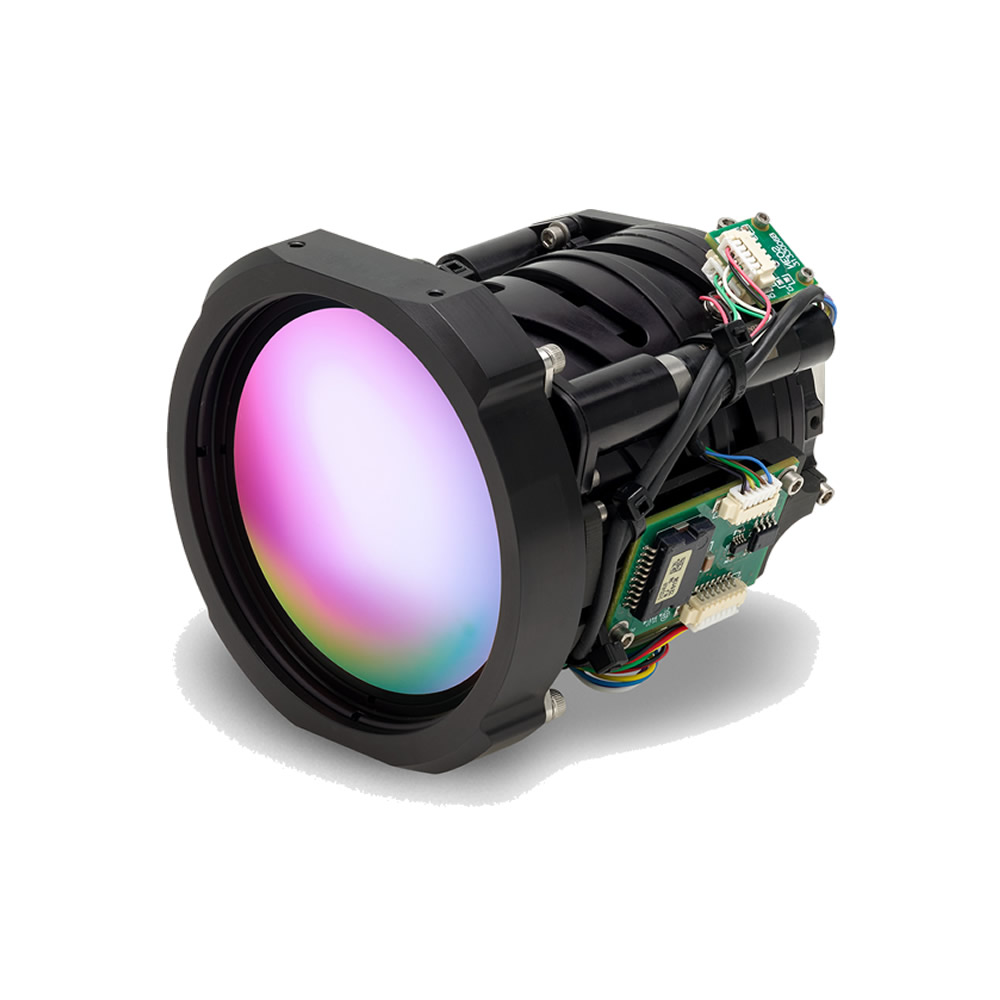

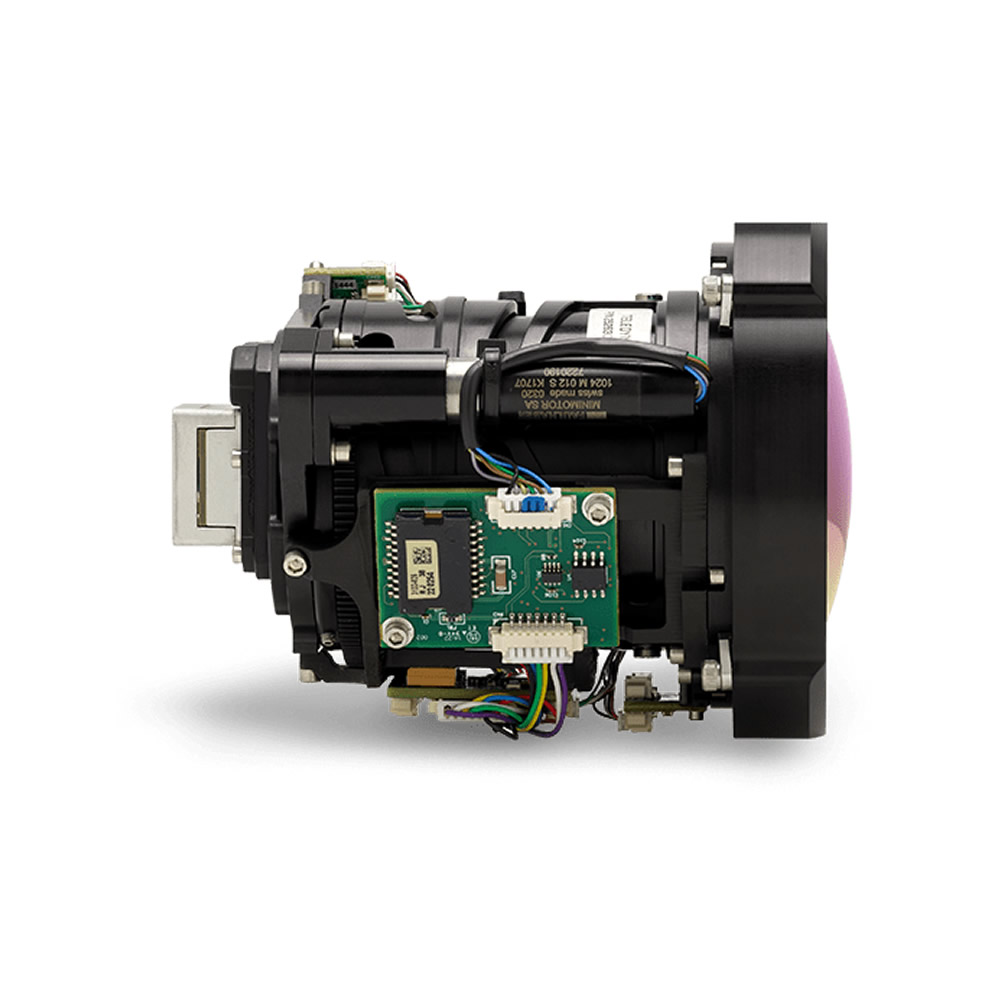

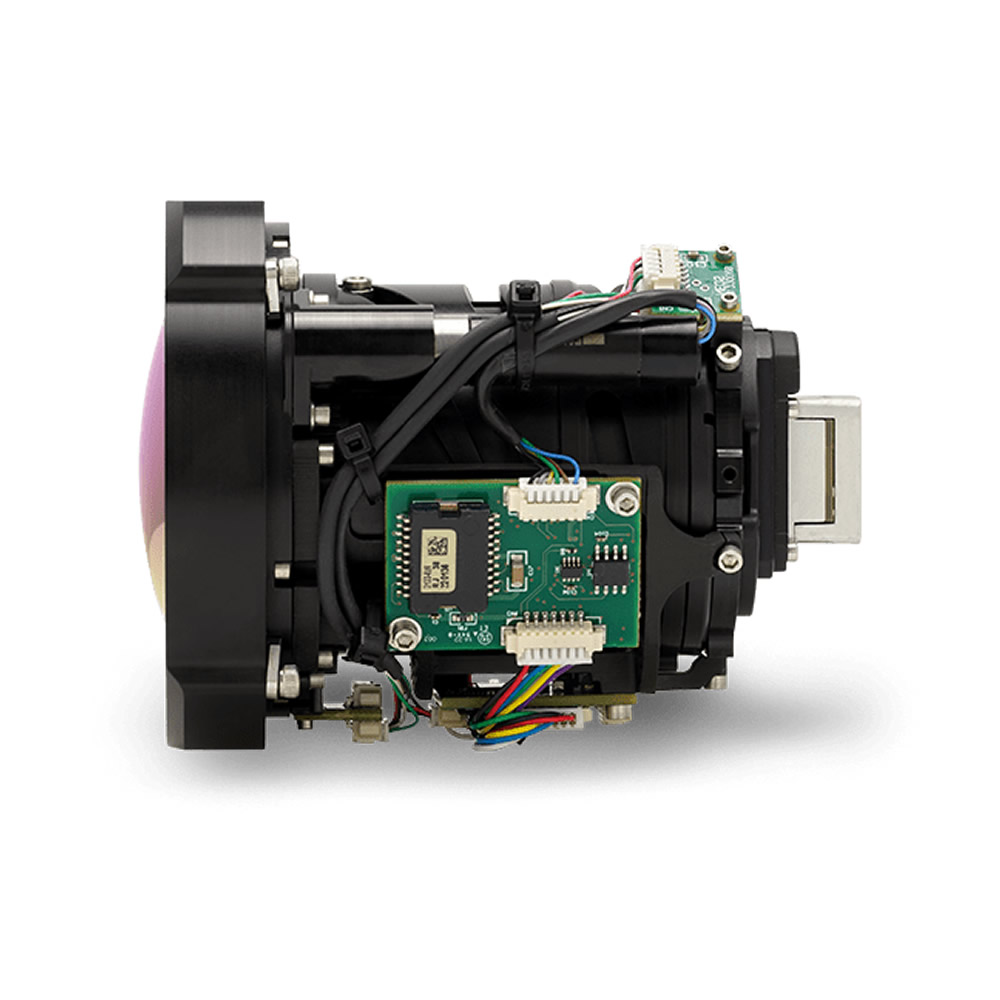

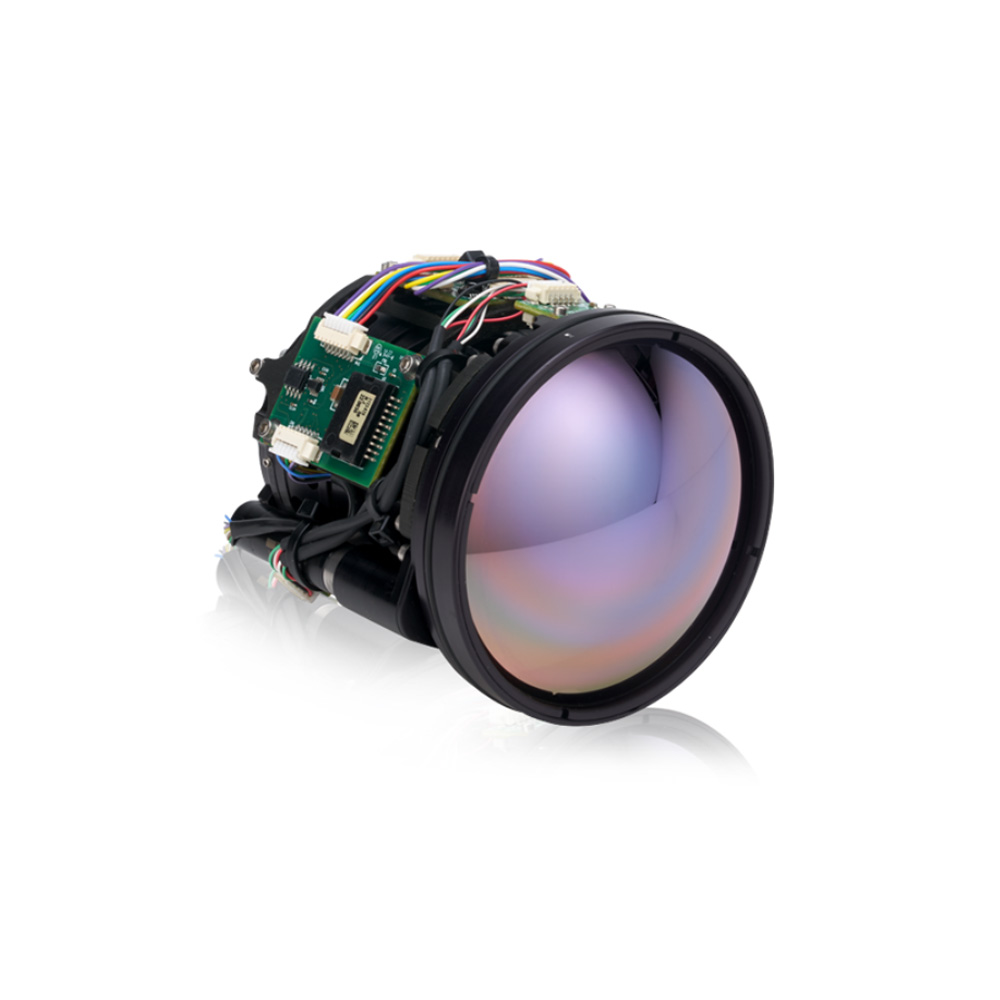

Teledyne FLIR Boson+ CZ 14-75 High Performance, Uncooled, LWIR OEM Thermal Camera Module

Boson®+ CZ 14-75

High Performance, Uncooled, Longwave Infrared (LWIR) OEM Thermal Camera Module

Made in the USA, the Boson+ CZ 14-75 combines Teledyne FLIR’s Boson+ world-class longwave infrared (LWIR) OEM camera module and 5x continuous zoom (CZ) lens offering a high–performance imaging solution. It features an industry-leading thermal sensitivity of ≤20 mK and an upgraded automatic gain control (AGC) filter delivering dramatically enhanced scene contrast and sharpness. The high-performance lens and control electronics maintain focus through zoom and provide real-time thermal gradient compensation as well as flexibility for user-defined command syntax and expansion for additional features.
The Boson+ camera module and 14 mm to 75 mm CZ lens are designed for each other, providing optimal performance and a single system warranty only achievable from a single source. The factory-integrated system lowers development and manufacturing risk and improves time-to-market, making the reliable Boson+ CZ 14-75 ideal for unmanned aerial vehicles, perimeter surveillance, light armored vehicle situational awareness and targeting, and soldier sighting systems.



MARKET-LEADING THERMAL SENSITIVITY, CONTRAST, AND LATENCY

NEDT of ≤20 mK extends detection, recognition, and identification (DRI) performance

• 640×512 resolution, 12 μm pixel pitch LWIR microbolometer
• ≤20 mK thermal sensitivity
• Rugged construction with an operating temperature rating of -40 °C to 80 °C
• Upgraded AGC provides blacker blacks and whiter whites



SEAMLESS OPTOMECHANICAL INTEGRATION

Camera and lens factory-designed to optimize performance and cost

• Factory alignment eliminates boresight wander through zoom
• Calibrated for maximum performance and MTF
• Object focus range compensation for near targets
• Thermal gradient compensation provides focus through full temperature range



DESIGNED FOR INTEGRATORS

Advanced control electronics, hardware, and integration support simplify integration and maximize reliability

• USB, CMOS, and MIPI video output interfaces
• Flexible user-defined command aliases
• Built-in Test (BIT) provides real-time feedback
• Manufactured in the USA, dual use, and classified under US Department of Commerce jurisdiction as EAR 6A003.b.4.a
