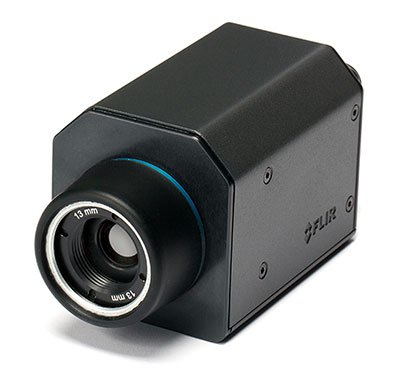

Teledyne FLIR A65 13mm (30 Hz) – 45° FoV Thermal Imaging Camera
- Compact
- 45°(H) × 37°(V) FoV
- 17 µm Pitch
- F#/1.25
- GigE Vision and GenICam compliant.
- GigE Vision lockable connector.
- PoE (power over Ethernet).
- 8-bit 640 × 512 pixel images streamed at 30 Hz, signal linear
- 14-bit 640 × 512 pixel images streamed at 30 Hz, signal and temperature linear
$8,959.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
FLIR A65 13mm (30 Hz) – 45° FoV Thermal Imaging Camera
IR TEMPERATURE SENSOR
The FLIR A65 13mm (30 Hz) is a thermal imaging temperature sensor for process control/quality assurance, fire prevention, and condition monitoring that offers comprehensive visual temperature monitoring. The A65 integrates seamlessly into existing systems and provides temperature linear output through GenICam™ compliant software.
Advanced Thermal Imaging For Condition Monitoring
AFFORDABLE AND COMPACT
At just 4.1 × 1.9 × 1.8 in, the A65 brings thermal imaging to your smallest spaces at an affordable price.
PLUG-AND-PLAY
Easy setup thanks to GigE Vision and GenICam compliance and GigE Vision lockable connector.
CONNECT MULTIPLE CAMERAS
Synchronize between multiple cameras for greater coverage and communication, or for stereoscopic applications.
Temperature Sensing With the Advantage of Image Quality
The FLIR A65 produces stunning 327,680 pixel thermal images that are low noise, and can show temperature differences as small as 50 mK. This allows you to easily track temperature changes, whether your application is process control/quality assurance, condition monitoring, or fire prevention.
VISUALIZE HEAT
These non-contact temperature sensors are enhanced with thermal imaging • Detect temperature differences as small as 50 mK
• Choose the right field of view for your measurement area, from wide (90°) to narrow (6.2°)
• Measures accurately in conditions up to 140°F (60°C)
COMMUNICATE DATA SEAMLESSLY
Stream temperature linear output through GenICam™ compliant software • Integrate easily with Cognex, National Instruments, and other top machine vision systems
• Stream thermal images at up to 60 Hz directly to your system, for instant data analysis
• Synchronize cameras for stereoscopic applications
DESIGNED TO FIT YOUR APPLICATIONS
Get more out of your data with advanced analysis tools • Compact size makes for easy installation in electrical cabinets and other small spaces.
• Offering the stability of a GigE Vision lockable connector, and the flexibility of Power over Ethernet (PoE)
• Ideal for any environment, the cameras’ robust design can withstand harsh conditions
| Resolution | |
|---|---|
| Pixel Pitch | |
| Spectral Band | |
| Sensitivity/NEdT | |
| Frame Rate | |
| Focus | |
| Detector Type | |
| Radiometry | |
| Object Temperature Range |
-25°C to 100°C (-13°F to 212°F), -40°C to 550°C (-40°F to 1022°F) |
| Temperature Accuracy | |
| Field of View | |
| Focal Length | |
| f-number | |
| Dimensions (L x W x H) | |
| Weight | |
| Digital Inputs | |
| Digital Outputs | |
| Input Voltage | |
| Ethernet Connector Type | |
| Ethernet Protocols |
DHCP, GigEVision, ICMP, IGMP, TCP, UDP |
| Operating Temperature Range | |
| Shock | |
| Non-Operating Temperature Range | |
| Humidity |
IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) |
