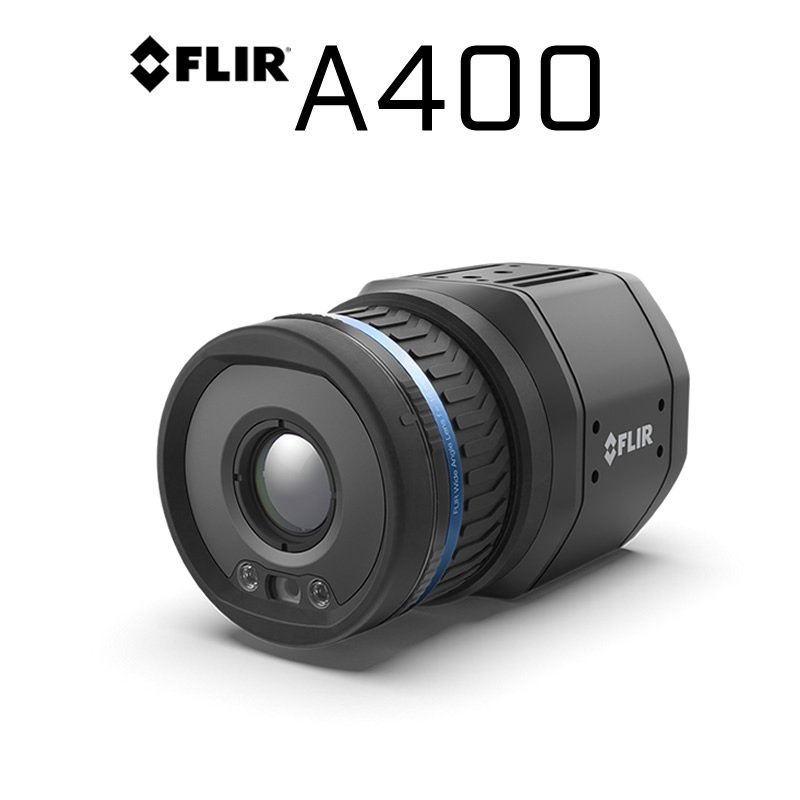

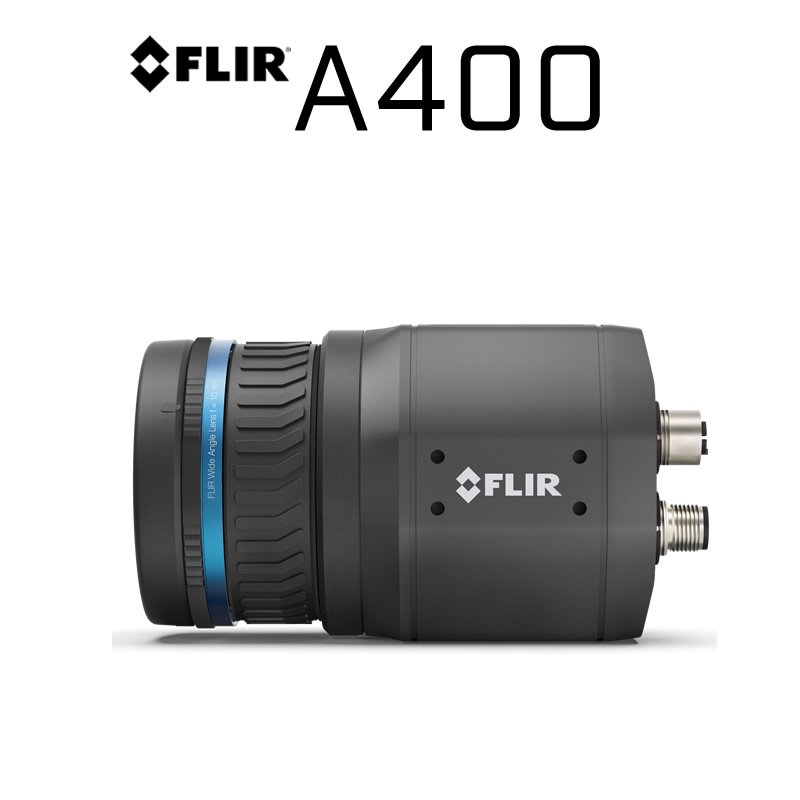

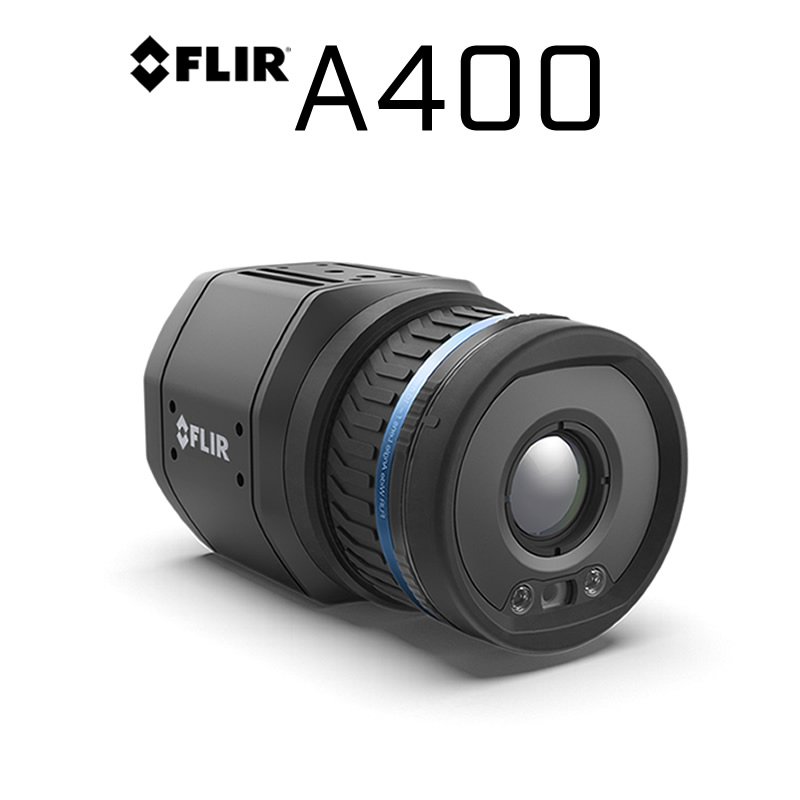

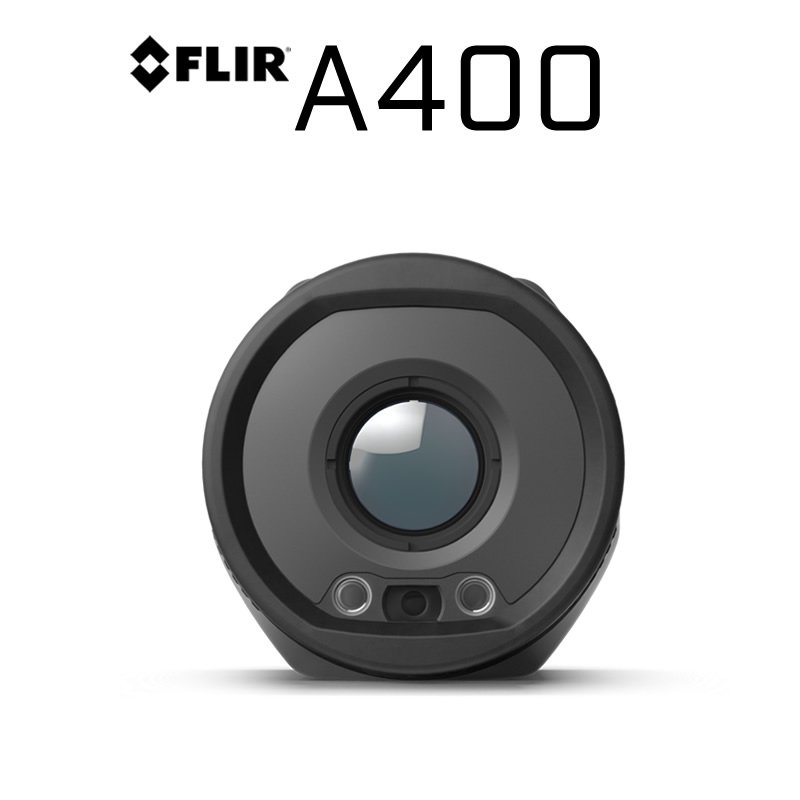

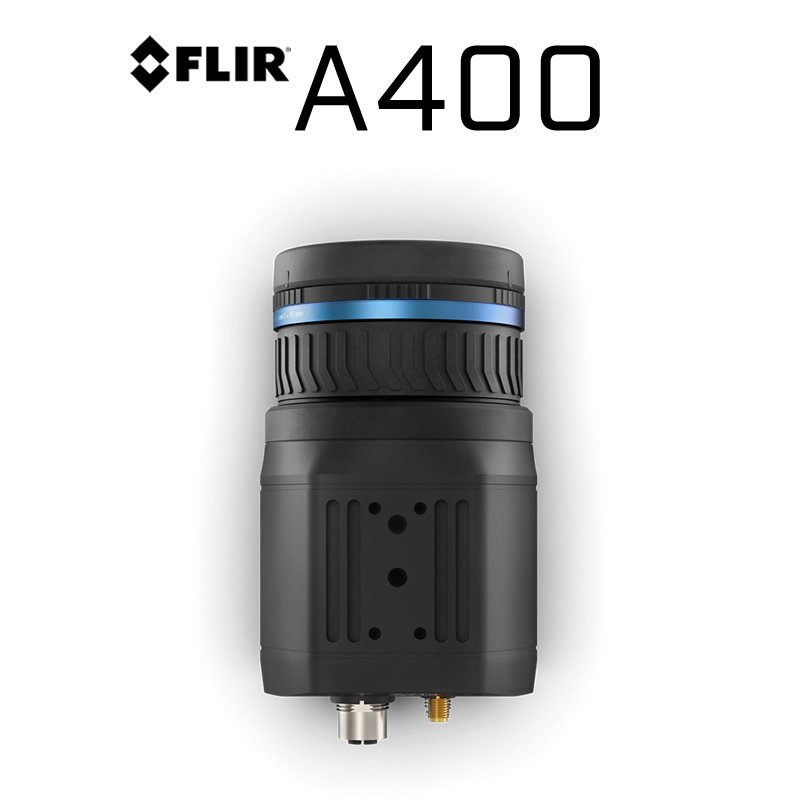

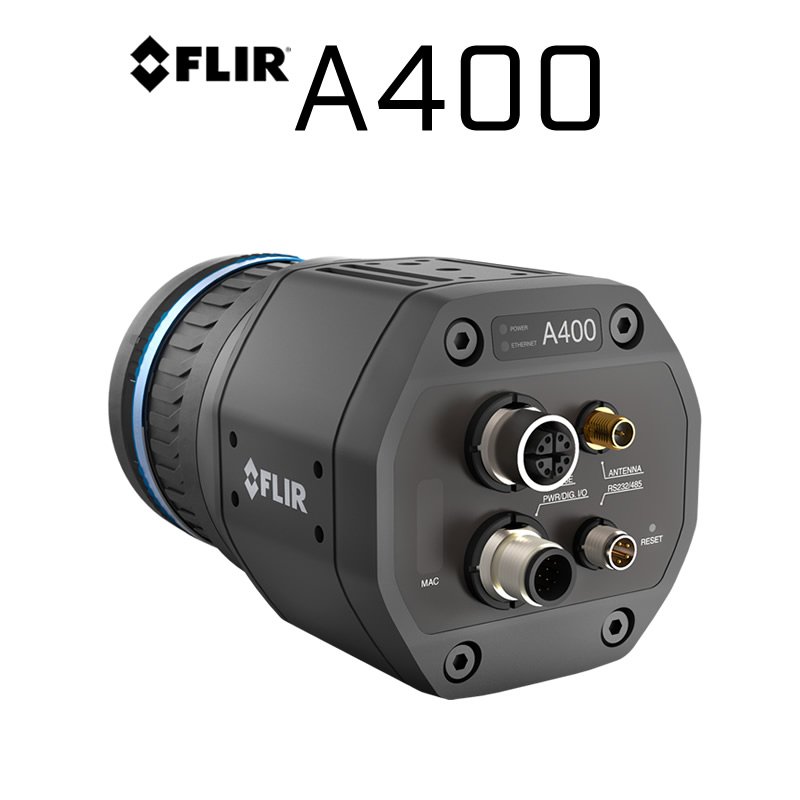

Teledyne FLIR A400 320 × 240 14°, 24°, 42° HFoV – LWIR Thermal Streaming Sensor
- Resolution: 320 × 240
- Field of View (FoV): 14°, 24°, and 42°
- <30 mK to <50 mK, lens dependent
- Detector Pitch: 24 μm
- Focus: One-shot contrast, Motorized, Manual
- Video/radiometric streaming, GVSP (GigE Vision) protocol
- 1280 x 960 Visual Camera Available*
- WiFi Available*
- IP54 by design or IP66 with accessory hood*
Please inquire for lead time and availability.
$7,188.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
FLIR A400
THERMAL IMAGE STREAMING CONFIGURATION
The FLIR A400 Thermal Fixed Mount Camera, when configured for Image Streaming, offer automation solution providers and industrial stakeholders the capabilities they need to accurately identify thermal issues across manufacturing processes. With multiple field-of-view choices, motorized focus control, and compressed radiometric image streaming, these automation cameras can tackle the most complex remote monitoring, alarming, and analytics objectives.
Optimize Process Control and improve quality assurance through inline thermal inspections or identify abnormal conditions before a failure causes a production shutdown. The FLIR A400-Series can also provide early detection for faster responses to potential fires, helping minimize injuries and equipment damage. A wide variety of customization gives the FLIR A400 Series cameras offer unmatched power and flexibility in thermal monitoring for improved product quality, productivity, maintenance, and safety.
IIdentify thermal issues across the manufacturing processes.
FLEXIBILITY AND EASE OF INTEGRATION
The FLIR A400 features a 320 x 240 pixel microbolometer that detects temperature differences as small as 50 mK, for accuracy at longer distances.
• GigE Vision compliant – the industry standard
• GenICam compliant – another important industry standard
• Supports both GigE and RTSP data-streaming protocols*
• Compatible with 3rd party SDK and application software support
FLIR INNOVATIONS FOR SMARTER RESULTS
Transform process control, QA, and condition monitoring with leading-edge technology
• Temperature linear output simplifies use of temperature data in third-party software
• Compressed radiometric streaming* cuts bandwidth by 90%, making it possible to connect cameras and share data via Wi-Fi†
• Reduced bandwidth also allows users to add cameras without expanding infrastructure, for an overall cost savings
• Simultaneously integrates with VMS and measurement applications using multi-image streaming*
WORLD-CLASS THERMAL IMAGING CAPABILITIES
Designed with the features to deliver consistent, accurate results
• Provides superior image quality with up to 640 × 480 (307,200) thermal pixel resolution‡
• Offers a high measurement accuracy of ±2°C
• Improves temperature accuracy for objects near and far with precision motorized focus
• Increases contrast in even-temperature scenes and enhances edge detail in low light using FSX® (Flexible Scene Enhancement)* technology
*Advanced †Optional ‡Model-dependent
| Resolution | |
|---|---|
| Pixel Pitch | |
| Spectral Band | |
| Sensitivity/NEdT |
<30 mK, 42° @ +30°C (+86°F) <40 mK, 24° @ +30°C (+86°F) <50 mK, 14° @ +30°C (+86°F) |
| Frame Rate | |
| Focus | |
| Detector Type | |
| Radiometry | |
| Object Temperature Range |
-20°C to 120°C (-4°F to 248°F), 0°C to 650°C (32°F to 1202°F) |
| Temperature Accuracy | |
| Field of View | |
| Focal Length | |
| f-number | |
| Dimensions (L x W x H) | |
| Weight | |
| Digital Inputs | |
| Digital Outputs |
3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC) |
| Input Voltage | |

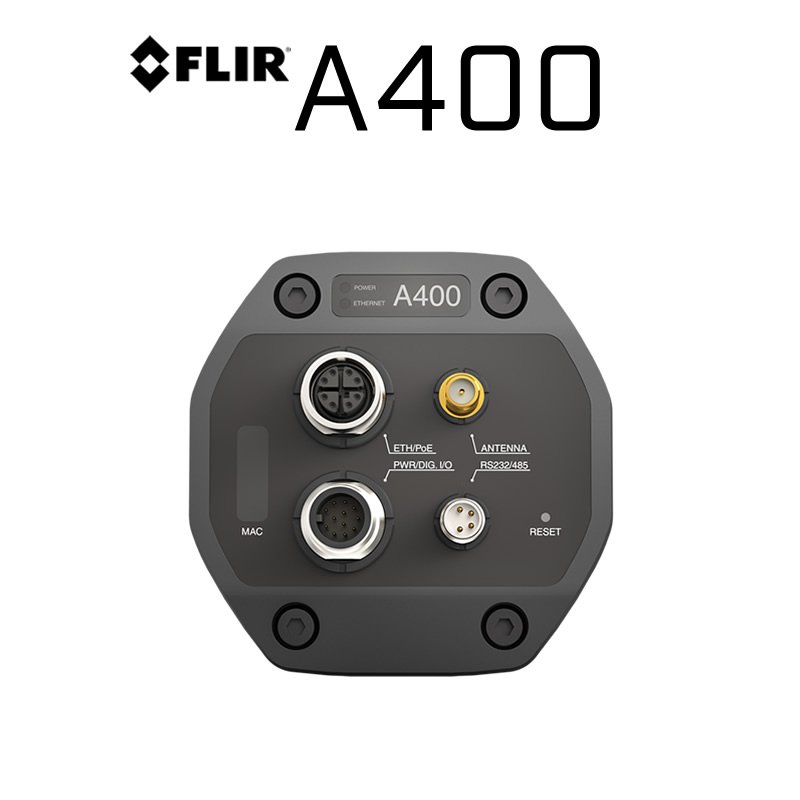

| Ethernet Connector Type | |
| Ethernet Protocols |
EtherNet/IP, DHCP, FTP, HTTP, HTTPS, ICMP, IEEE 1588, IGMP, MDNS (Bonjour), Modbus TCP Master, Modbus TCP Slave, MQTT, RTP, RTSP, SFTP (server), SMTP, SNMP, SNTP, TCP, UDP, uPnP |
| Operating Temperature Range | |
| Shock | |
| Non-Operating Temperature Range | |
| Humidity |
IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) |
