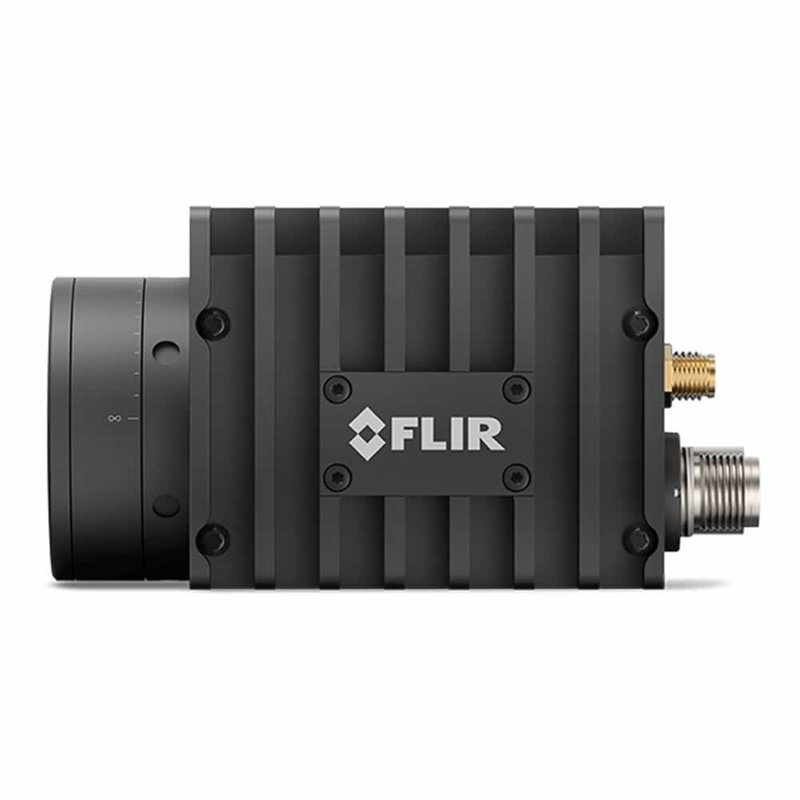

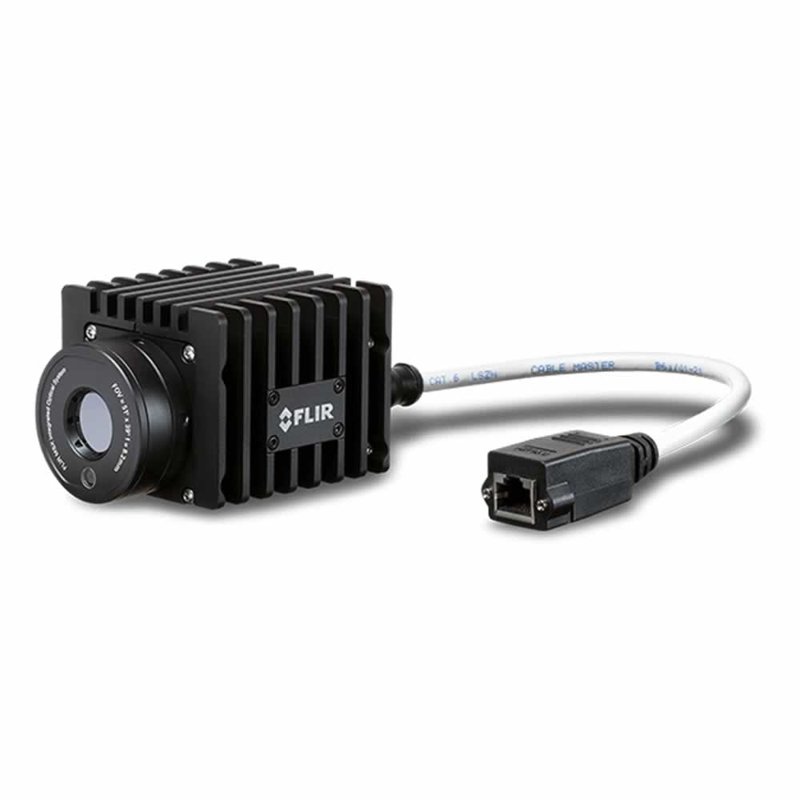

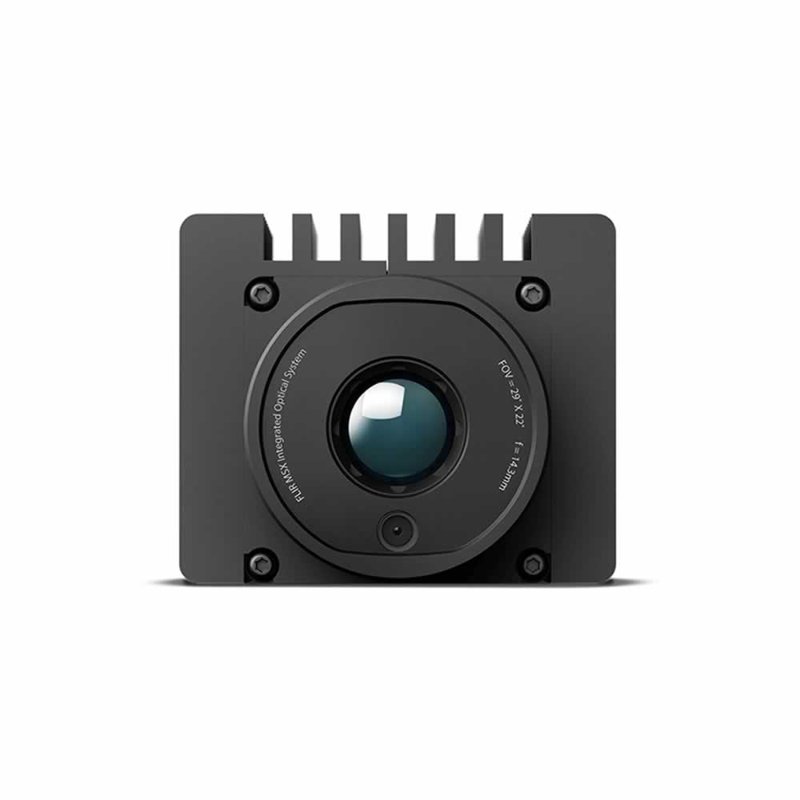

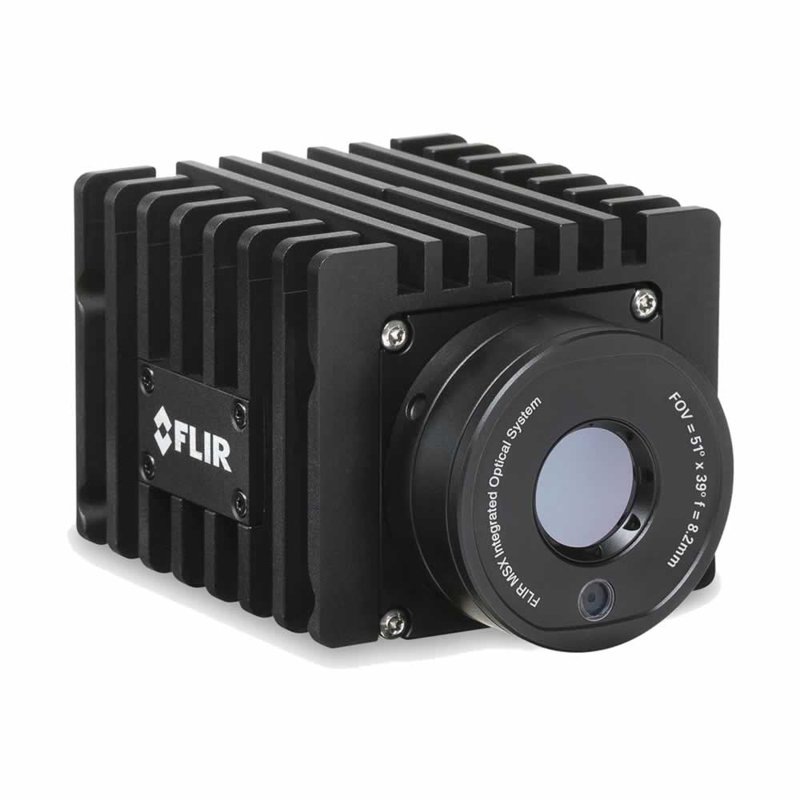

Teledyne FLIR A70 Compact Thermal Image Streaming Camera
- Available Field of View (HFoV):
- 29°: <45 mK
- 51°: <45 mK
- 95°: <60 mK
- Resolution: 640 x 480
- Detector Pitch: 12 µm
- IR Video Stream: RTSP protocol
- IP66 rated
- 519g (1.14lb) without bottom cooling plate
$8,043.99
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
FLIR A70
Compact Thermal Image Streaming Camera

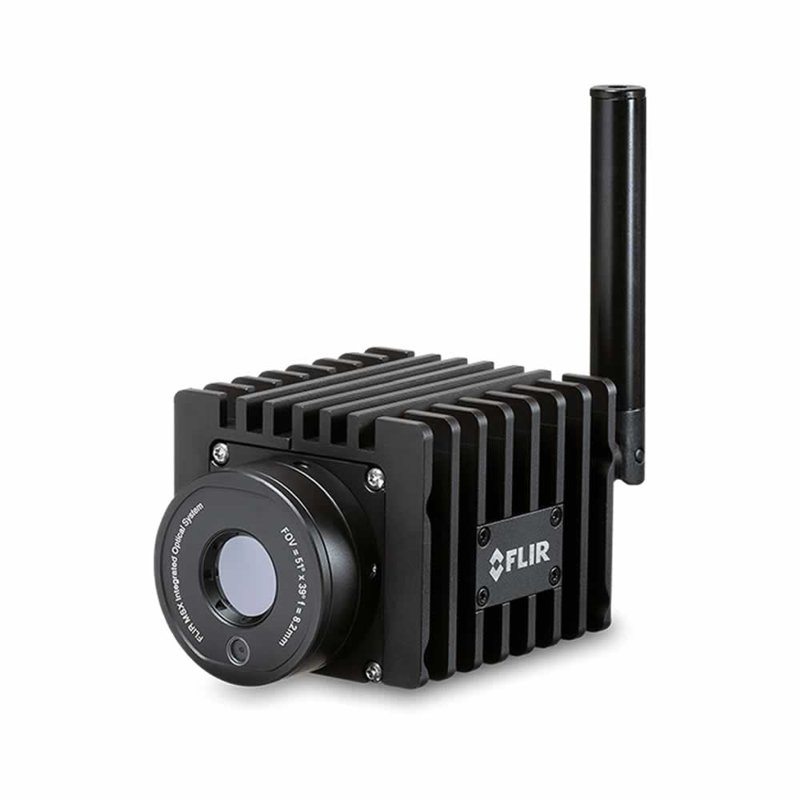

FLIR A50 and A70 Thermal Image Streaming cameras are the right choice for users who want camera control capabilities and image streaming over Ethernet, as well as flexibility to perform analytics and raw data collection on thermal characteristics using preferred software applications. Thermal image and data output can easily be integrated into custom solutions with the GigE Vision and GenICam support. With options for Wi-Fi, an integrated visual camera, compressed radiometric image streaming, and ONVIF S compatibility, these small and lightweight fixed-focus automation cameras will optimize process control and quality assurance to improve yield, product quality, through-put time, and lower costs.

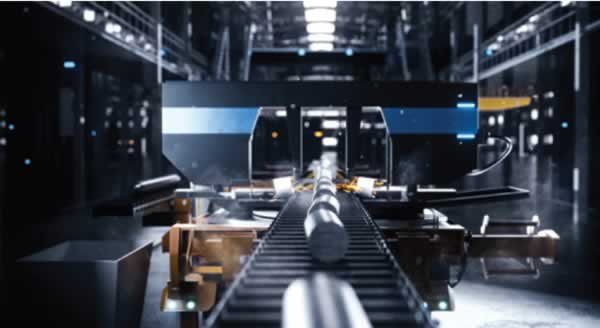

IMPROVE PRODUCTION AND QUALITY
Quickly access thermal characteristics with the wide-area, non-contact temperature sensor, which provides up to 464 x 348 (307,200 pixels) resolution and ±2°C accuracy.

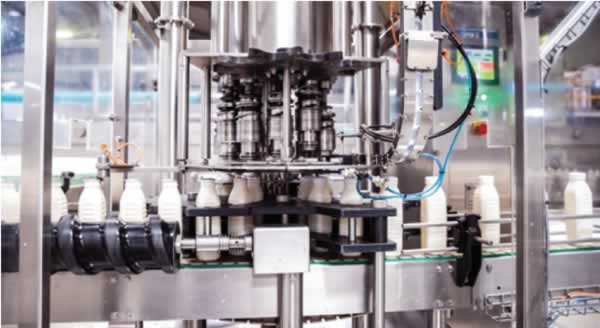

TROUBLE-FREE INTEGRATION
Simplify integration efforts with thermal smart sensors that communicate with standard industrial protocols and video management systems including HMI, SCADA, and optional ONVIF S compatibility.

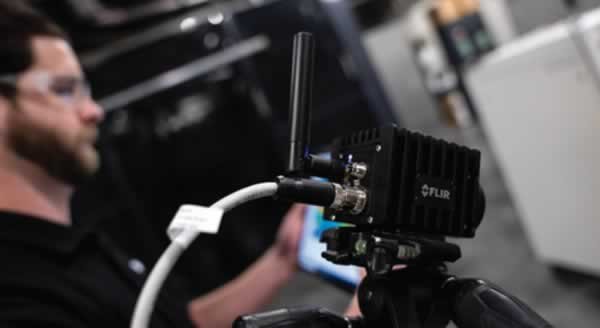

RUGGED AND EASY TO INSTALL
Easily install the lightweight, IP66 rated camera with M8/12 connectors in any location – with multiple mounting options.
| Resolution | |
|---|---|
| Pixel Pitch | |
| Spectral Band | |
| Sensitivity/NEdT | |
| Frame Rate | |
| Focus | |
| Detector Type | |
| Radiometry | |
| Object Temperature Range |
-20°C to 175°C (-4°F to 347°F), '-20°C to 250°C (-4°F to 482°F), 175°C to 1000°C (347°F to 1832°F) |
| Temperature Accuracy | |
| Field of View | |
| Focal Length | |
| f-number | |
| Dimensions (L x W x H) | |
| Weight | |
| Digital Inputs | |
| Digital Outputs |
3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC) |
| Input Voltage | |
| Ethernet Connector Type | |
| Ethernet Protocols |
DHCP, FTP, HTTP, ICMP, IEEE 1588, IGMP, MDNS (Bonjour), RTP, RTSP, SFTP (server), SMTP, SNMP, SNTP, TCP, UDP, uPnP |
| Operating Temperature Range | |
| Shock | |
| Non-Operating Temperature Range | |
| Humidity |
IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) |
