Teledyne FLIR Boson Development Board
Full access to Boson 80-pin interface allows connection to:
- USB 3
- 100/GigE Ethernet
- CameraLink
- Serial Com
- Micro SDCard
- I2C
- SPI
- SDIO
- VSYNC/RESET
- GPIO
$991.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Boson Test Board, Detail PCB ASSEMBLY

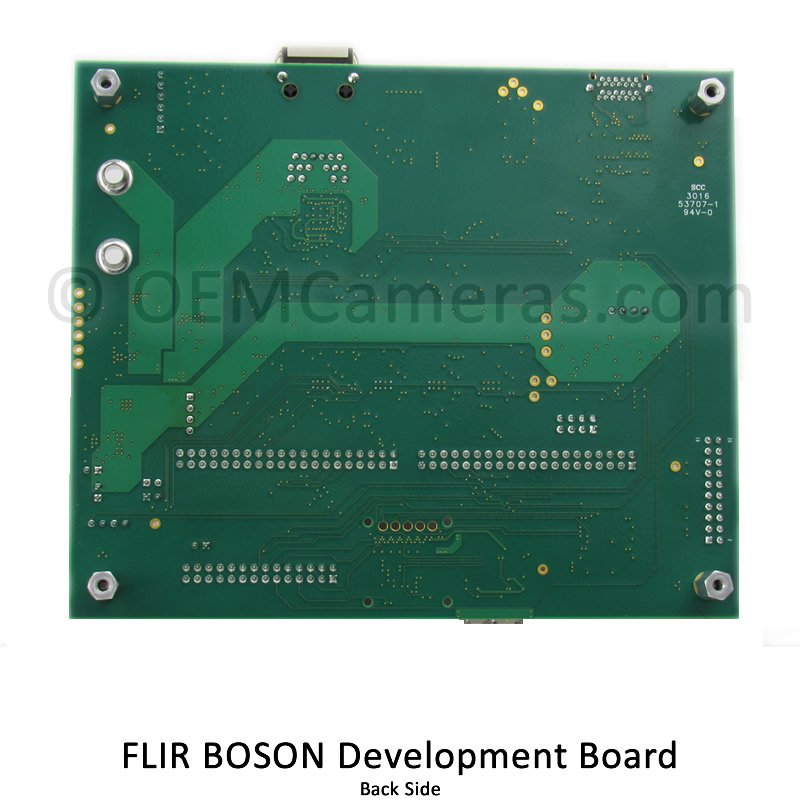

Boson Development Board
The Development breakout board for Boson users and integrators that need easy access to the Boson I/O and interfaces. This board is intended for user development purposes, and is not intended or rated for long term reliability over temperature.
It provides full access to the Boson 80-pin connector with a number of connectors:
- standard USB-3 micro-B (Super Speed) receptacle
- standard SDR-26 receptacle with Camera-Link compliant output
- SDIO card slot
- UART header
- I2C header
- SPI header
- Power jacks
| Video Output Type |
SDR-26, USB-3 |
|---|
