Imaging Source DFK 23UV024 USB 3.0 Color Industrial Camera
- USB 3.0 Color
- 1/3″ Aptina CMOS
- Global Shutter
- 752×480 Resolution
- Up to 100fps
- Trigger Input + I/O
$380.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
Imaging Source DFK 23UV024
USB 3.0 Color Industrial Camera
The Imaging Source DFK 23UV024 USB 3.0 camera is the perfect solution for many industrial automation, quality assurance, security, surveillance, and medical applications.
Utilizing a color CMOS sensor up to 752×480, this camera features a variety of input, output, strobe, and trigger options via an external Hirose port. With up to 100fps and a trigger delay of less than 5 micro seconds, this USB 3.0 camera boasts a low cost and highly versatile imaging solution.

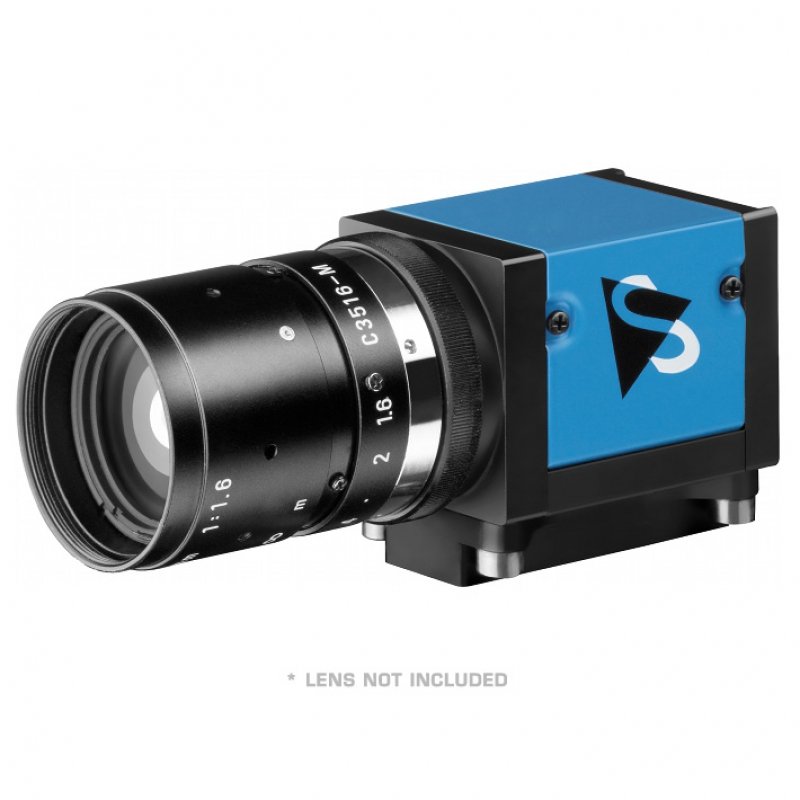

* Please note, a lens is required and sold separately
| Dynamic Range | |
|---|---|
| Video Format |
752×480 (0.4 MP) RGB32 @ 100 fps, 752×480 (0.4 MP) Y16 @ 100 fps, 752×480 (0.4 MP) Y800 @ 100 fps |
| IR-Cut Filter |
Yes |
| Sensor Type | |
| Sensor Specification |
onsemi MT9V024 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
0.4 MP |
| Resolution | |
| FPS |
100 FPS |
| Mono/Color |
Color |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.5 VDC to 5.5 VDC |
| Current Consumption |
Approx. 250 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |

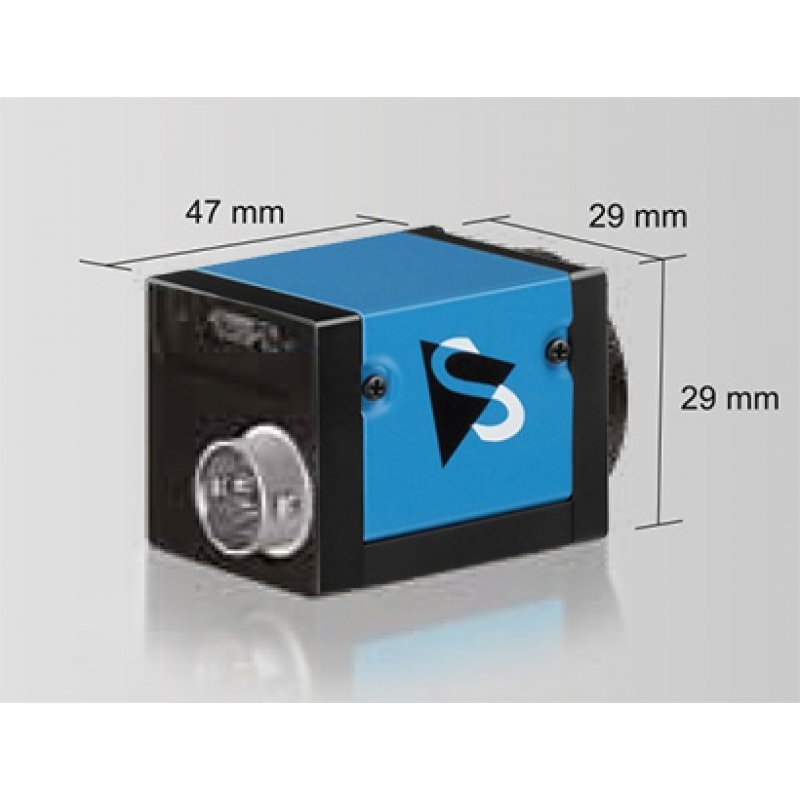

| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
1/66667 s to 1/4 s |
| Gain | |
| White Balance | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
