Imaging Source DFK AFUJ003-M12 USB 3.0 Color Autofocus Camera
- USB 2.0 Color
- 1/2.3″ Aptina CMOS
- Autofocus Camera
- Rolling Shutter
- 3856×2764 Resolution
- Up to 7fps
$631.00
We usually have a majority of these items in stock.
Please call or contact us for availability.
Description
Specifications
Downloads

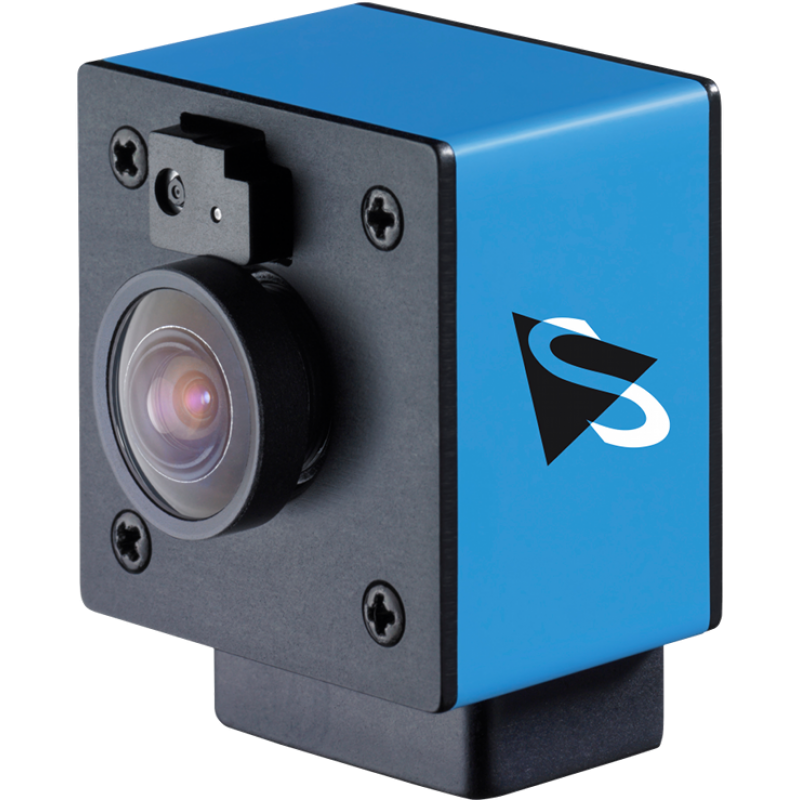

Imaging Source DFK AFUJ003-M12
USB 3.0 color autofocus camera
The Imaging Source DFK AFUJ003-M12 color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2.3 inch Aptina CMOS MT9J003 sensor. With up to 7 images per second, the DFK AFUJ003-M12 is a low cost, yet highly versatile imaging solution. The camera has an integrated focus unit for M12 board lenses, which can be adjusted manually, using the shipped SDK or end-user software. In addition, the driver is able to adjust the focus unit automatically.
The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFK AFUJ003-M12 to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.
| Dynamic Range | |
|---|---|
| Video Format |
3856×2764 (10.7 MP) RGB32 @ 7 fps, 3856×2764 (10.7 MP) Y16 @ 4 fps, 3856×2764 (10.7 MP) Y800 @ 7 fps |
| Sensor Type | |
| Sensor Specification |
onsemi MT9J003 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
10.7 MP |
| Resolution | |
| FPS |
7 FPS |
| Mono/Color |
Color |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.5 VDC to 5.5 VDC |
| Current Consumption |
Approx. 250 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
1/20000 s to 1/4 s |
| Gain | |
| White Balance | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
