Imaging Source DFK 23UP1300 USB 3.0 Color Industrial Camera
- 1/2 inch ON Semiconductor CMOS Python sensor (PYTHON 1300)
- 1,280x1,024 (1.3 MP), up to 95 fps
- Global shutter
- Trigger and I/O inputs
$493.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads

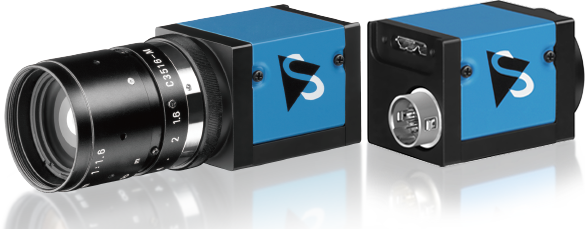

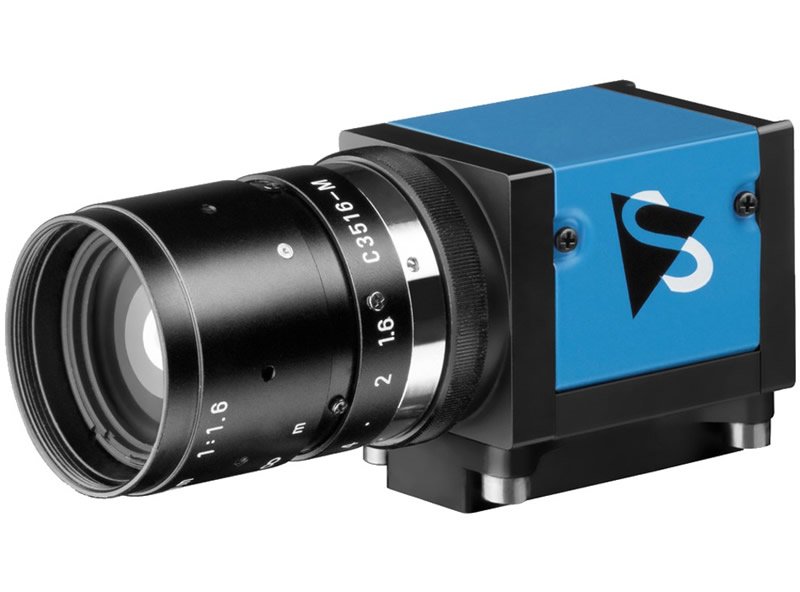

Imaging Source DFK 23UP1300
USB 3.0 Color Industrial Camera
The Imaging Source DFK 23UP1300 color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2 inch ON Semiconductor CMOS Python PYTHON 1300 sensor. With up to 168 images per second, the DFK 23UP1300 is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.
The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFK 23UP1300 to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.
| Dynamic Range | |
|---|---|
| Video Format |
1280 × 1024 (1.3 MP) RGB32 @ 95 fps, 1280 × 1024 (1.3 MP) Y800 @ 95 fps |
| IR-Cut Filter |
Yes |
| Sensor Type | |
| Sensor Specification |
onsemi PYTHON 1300 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
1.3 MP |
| Resolution | |
| FPS |
95 FPS |
| Mono/Color |
Monochrome |
| Iris | |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.5 VDC to 5.5 VDC |
| Current Consumption |
Approx. 250 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
1/100000 s to 30 s |
| Gain | |
| White Balance | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
