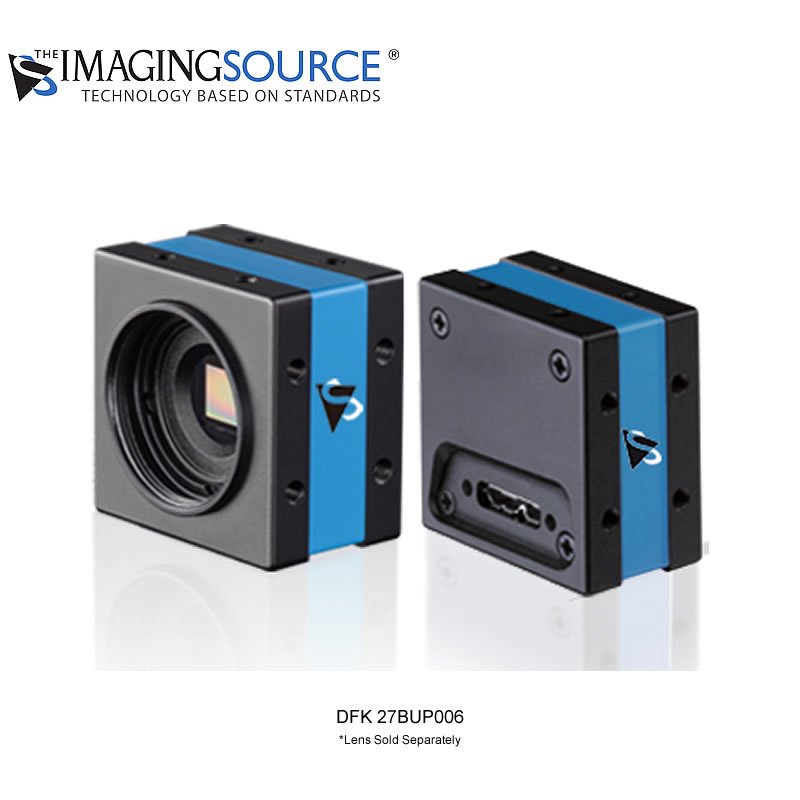

Imaging Source DFK 27BUP006 USB 3.0 Color Industrial Camera
- 1/2.5 inch Aptina CMOS sensor (MT9P006)
- 2,592×1,944 (5 MP), up to 15 fps
- Rolling shutter
- Trigger and I/O inputs
- Windows and Linux software included
$275.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
Imaging Source DFK 27BUP006
USB 3.0 Color Industrial Camera
The Imaging Source DFK 27BUP006 USB 3.0 color industrial camera is the perfect solution for many industrial automation, quality assurance, security, surveillance, and medical applications.
Utilizing a color CMOS sensor up to 2592×1944 (5MP), this camera features a variety of input, output, strobe, and trigger options.
* Please note, a lens is required and sold separately
| Dynamic Range | |
|---|---|
| Video Format |
2592 × 1944 (5 MP) RGB32 @ 15 fps, 2592 × 1944 (5 MP) Y16 @ 7.5 fps, 2592 × 1944 (5 MP) Y800 @ 15 fps |
| IR-Cut Filter |
Yes |
| Sensor Type | |
| Sensor Specification |
onsemi MT9P006 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
5 MP |
| Resolution | |
| FPS |
15 FPS |
| Mono/Color |
Color |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.75 VDC to 5.25 VDC |
| Current Consumption |
Approx. 250 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
1/20000 s to 1/4 s |
| Gain | |
| White Balance | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
