Imaging Source DFK 33UX183 USB 3.0 Color Microscope Camera
- 1 inch Sony CMOS Exmor sensor (IMX183CQJ)
- 5,472x3,648 (20 MP), up to 18 fps
- Rolling shutter
- Trigger and I/O inputs
- Windows and Linux software included
$776.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
Imaging Source DFK 33UX183
USB 3.0 color microscope camera
The 33U series camera DFK 33UX183 with a Sony IMX183 sensor delivers 18 frames per second with a resolution of 5472×3648 (20 MP). 33U Series: The Imaging Source’s largest selection of industrial cameras offers developers and integrators a broad selection of resolutions (up to 20 MP) and frame rates to meet diverse application needs and are ideal for continuous operation in industrial environments. The cameras’ USB 3 interface (Micro-B connector) ensures efficient data transfer with high frame rates. The USB3 Vision standard allows for rapid integration into new and existing applications via The Imaging Source’s IC Imaging Control 4 SDK as well as most other third-party image processing libraries.
| Dynamic Range | |
|---|---|
| Video Format | |
| IR-Cut Filter |
Yes |
| Sensor Type | |
| Sensor Specification |
Sony IMX183 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
20 MP |
| Resolution | |
| FPS |
18 FPS |
| Mono/Color |
Color |
| Iris | |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.75 VDC to 5.25 VDC |
| Current Consumption |
Approx. 660 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |

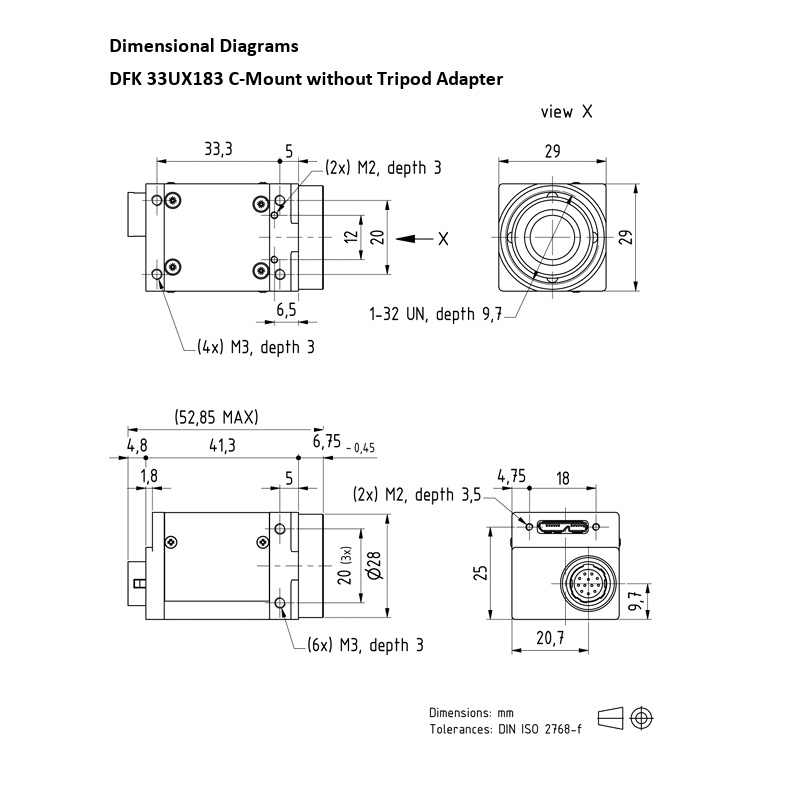

| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
50 µs to 30 s |
| Gain | |
| White Balance | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
