Imaging Source DFK 33UX226 USB 3.0 Color Microscope Camera
- 1/1.7 inch Sony CMOS STARVIS sensor (IMX226CQJ)
- 4,000×3,000 (12 MP), up to 30 fps
- Rolling shutter
- Trigger and I/O inputs
$574.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads

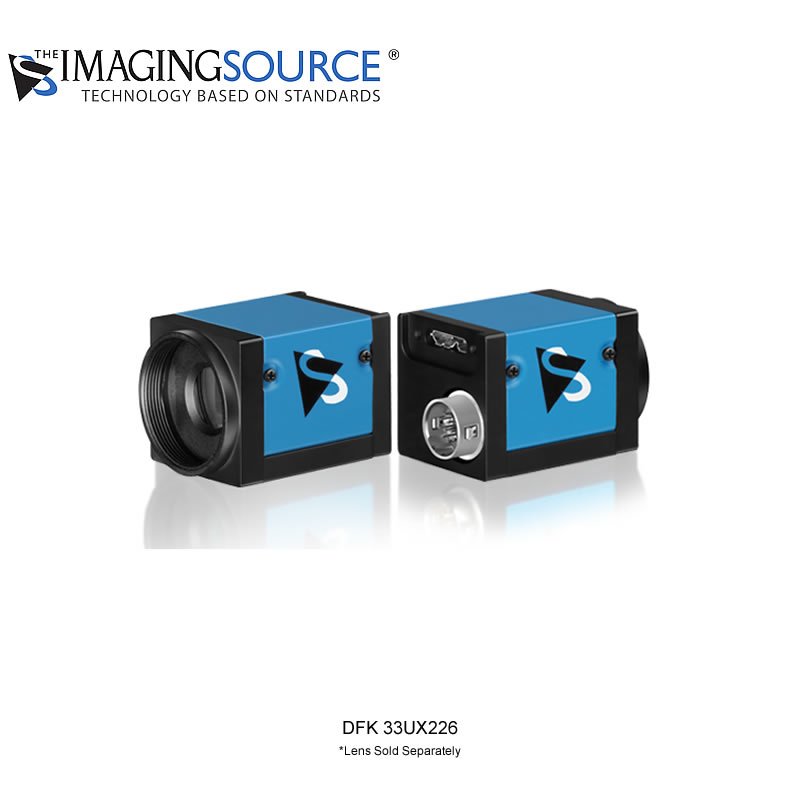

Imaging Source DFK 33UX226
USB 3.0 color microscope camera
Capture Exactly What You See Through The Ocular
The Imaging Source 12 megapixel microscope camera (DFK 33UX226) has been designed to be a cost-effective, versatile solution for demanding microscopy applications.
Thanks to the camera’s USB 3.0 interface, 4,000×3,000, up to 30 fps is available on the host PC. The camera ships with Sony’s 1/1.7 inch Sony CMOS Starvis sensor (IMX226CQJ) technology, and allows a maximum resolution of 12 megapixels.
Key Features:
- 1/1.7 inch Sony CMOS STARVIS sensor (IMX226CQJ)
- 4,000×3,000 (12 MP), up to 30 fps
- Rolling shutter
- Trigger and I/O inputs
- Windows and Linux software included
| Dynamic Range | |
|---|---|
| Video Format | |
| IR-Cut Filter |
Yes |
| Sensor Type | |
| Sensor Specification |
Sony IMX226 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
12 MP |
| Resolution | |
| FPS |
30 FPS |
| Mono/Color |
Color |
| Iris | |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.75 VDC to 5.25 VDC |
| Current Consumption |
Approx. 660 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
50 µs to 300 s |
| Gain | |
| White Balance | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
