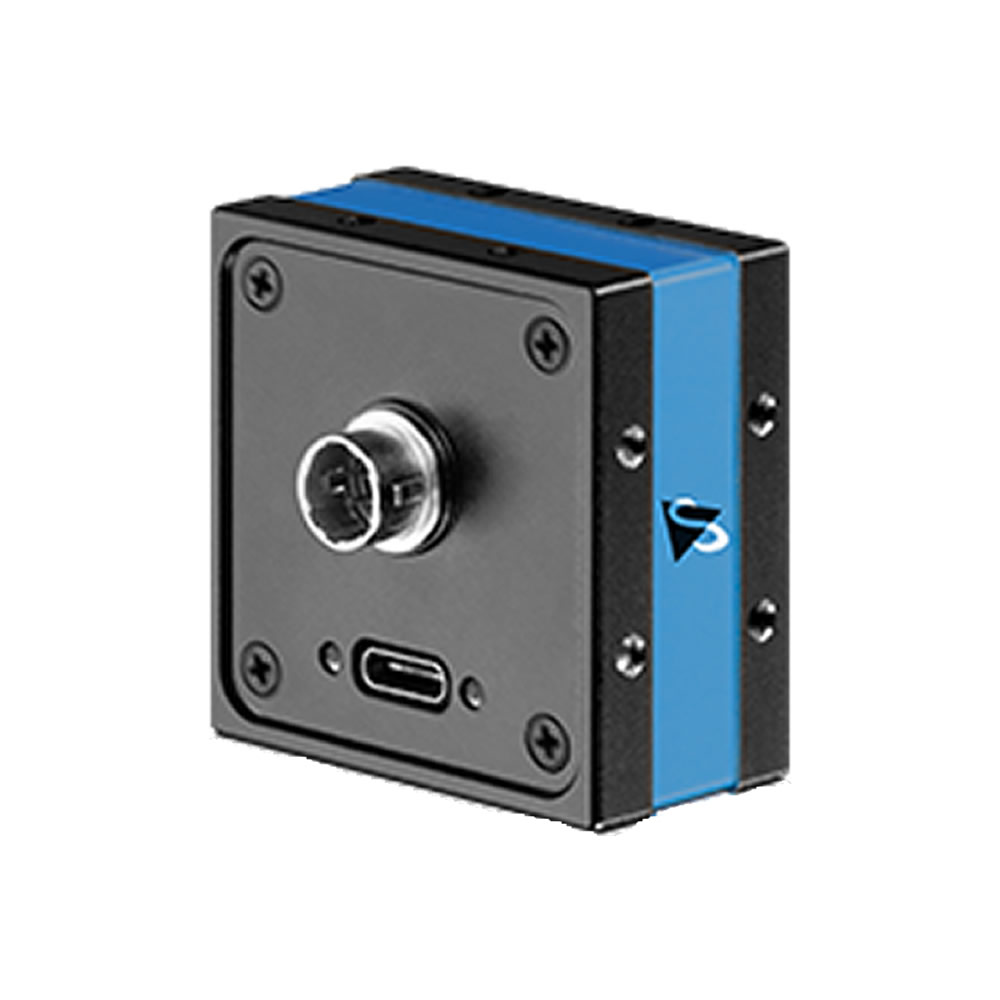

Imaging Source DFK 37BUX462 USB 3.1 Color Industrial Camera
- 1/2.8 inch Sony CMOS STARVIS sensor (IMX462)
- 1,920×1,080 (2.1 MP), up to 143 fps
- Rolling shutter
$479.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
Imaging Source DFK 37BUX462
USB 3.1 color industrial camera
The Imaging Source DFK 37BUX462 USB 3.1 color industrial cameras are equipped with highly-sensitive, low-noise Sony STARVIS rolling-shutter sensor delivers outstanding image quality and good NIR sensitivity. The DFK 37BUX462 camera can automatically control gain and exposure time. These automatic functions are enabled by default.
The USB3 Vision standard (USB 3.1- Gen. 1), ensures stability and compatibility for easy integration and flexible configuration. Even at high frame rates, the DFK 37BUX462 delivers distortion-free images and are well-suited for applications such as intelligent traffic systems (ITS), automated optical inspection (AOI) and microscopy.
| Dynamic Range | |
|---|---|
| Video Format | |
| IR-Cut Filter |
Yes |
| Sensor Type | |
| Sensor Specification |
Sony IMX462 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
2.1 MP |
| Resolution | |
| FPS |
143 FPS |
| Mono/Color |
Color |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.75 VDC to 5.25 VDC |
| Current Consumption |
Approx. 260 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
20 µs to 30 s |
| Gain | |
| White Balance | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
