Imaging Source DFM 27UP006-ML USB 3.0 color board camera
- 1/2.5 inch Aptina CMOS sensor (MT9P006)
- 2,592x1,944 (5 MP), up to 15 fps
- Rolling shutter
- Trigger and I/O inputs
$206.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
Drivers

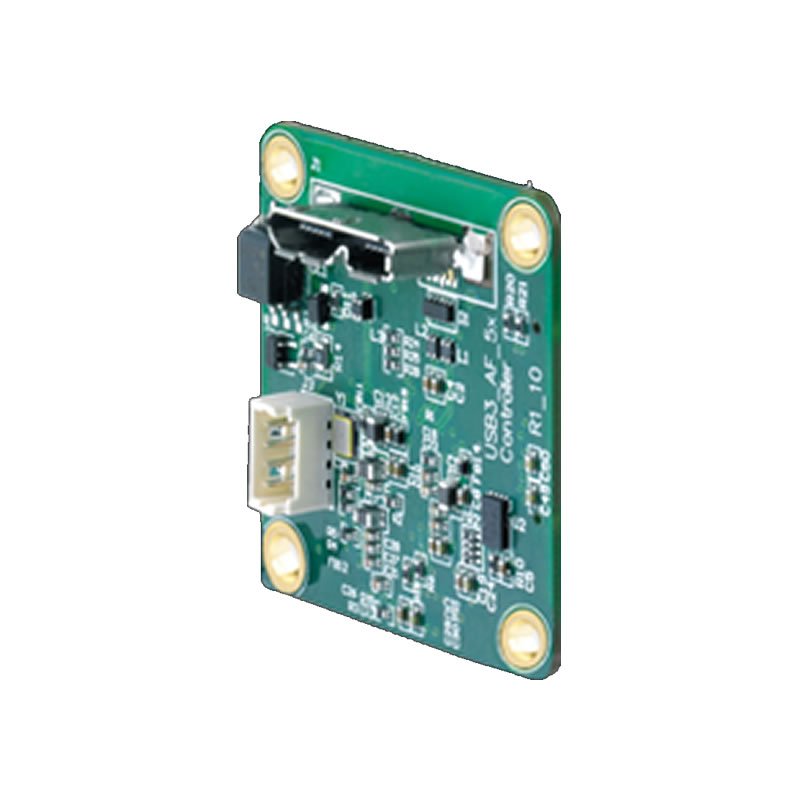

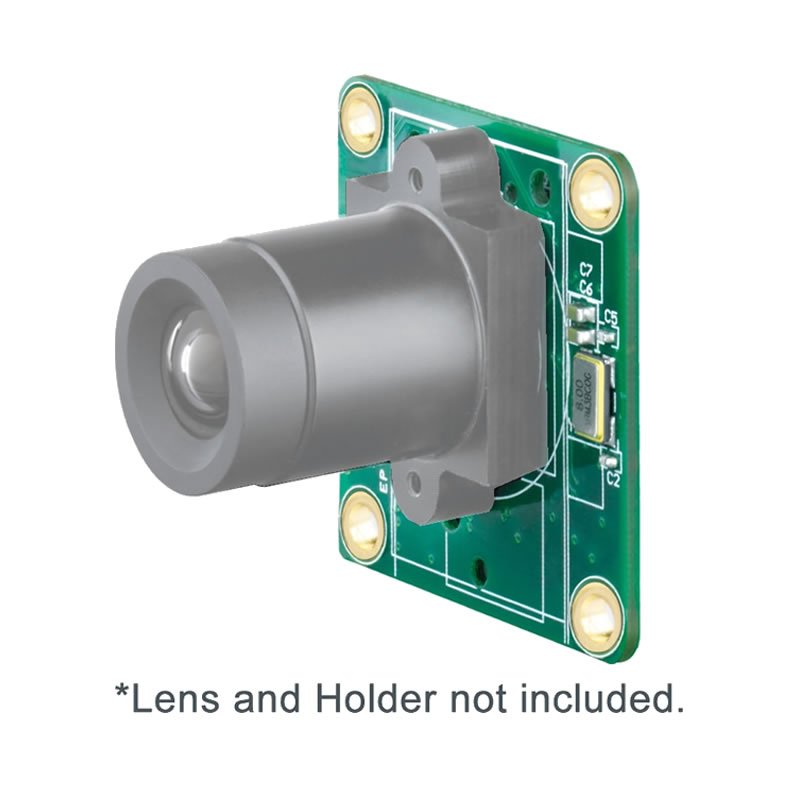

DFM 27UP006-ML
USB 3.0 color board camera
The Imaging Source DFM 27UP006-ML color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2.5 inch ON Semiconductor MT9P006 sensor. With up to 15 images per second, the DFM 27UP006-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses.
The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFM 27UP006-ML to be integrated in to common machine vision software libraries, such as LabView and OpenCV.
| Dynamic Range | |
|---|---|
| Video Format |
2592 × 1944 (5 MP) RGB32 @ 15 fps, 2592 × 1944 (5 MP) Y16 @ 7.5 fps, 2592 × 1944 (5 MP) Y800 @ 15 fps |
| IR-Cut Filter |
Yes |
| Sensor Type | |
| Sensor Specification |
onsemi MT9P006 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
5 MP |
| Resolution | |
| FPS |
15 FPS |
| Mono/Color |
Color |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.5 VDC to 5.5 VDC |
| Current Consumption |
Approx. 250 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
1/20000 s to 1/4 s |
| Gain | |
| White Balance | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
