Imaging Source DMK 23UP031 USB 3.0 Monochrome Industrial Camera
- USB 3.0 Monochrome
- 1/2.5″ Aptina CMOS
- Rolling Shutter
- 2592×1944 Resolution
- Up to 15fps
- Trigger Input + I/O
$505.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads

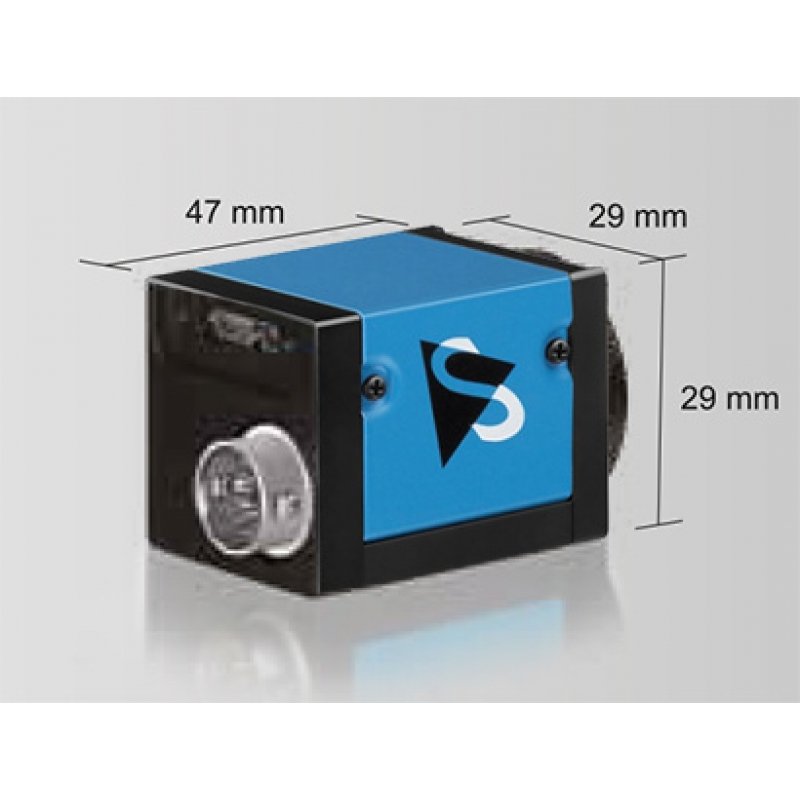

Imaging Source DMK 23UP031
USB 3.0 Monochrome Industrial Camera
The Imaging Source DMK 23UP031 USB 3.0 camera is the perfect solution for many industrial automation, quality assurance, security, surveillance, and medical applications.
Utilizing a monochrome CMOS sensor up to 2592×1944, this camera features a variety of input, output, strobe, and trigger options via an external Hirose port. With up to 15fps and a trigger delay of less than 5 micro seconds, this USB 3.0 camera boasts a low cost and highly versatile imaging solution.

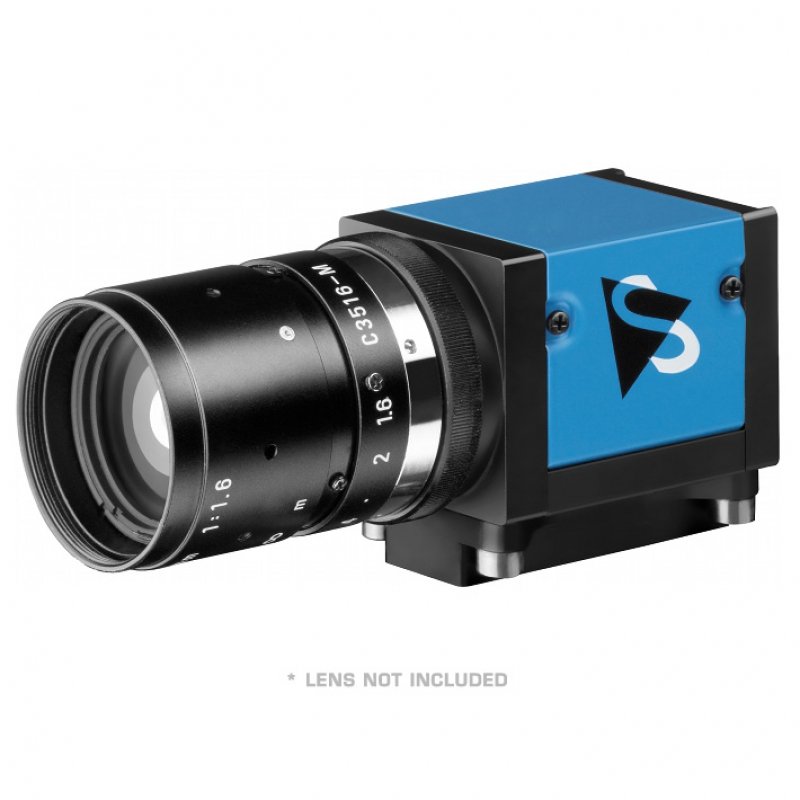

* Please note, a lens is required and sold separately
| Dynamic Range | |
|---|---|
| Video Format |
2592×1944 (5 MP) RGB32 @ 15 fps, 2592×1944 (5 MP) Y16 @ 15 fps, 2592×1944 (5 MP) Y800 @ 15 fps |
| IR-Cut Filter |
No |
| Sensor Type | |
| Sensor Specification |
onsemi MT9P006 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
5 MP |
| Resolution | |
| FPS |
15 FPS |
| Mono/Color |
Monochrome |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.5 VDC to 5.5 VDC |
| Current Consumption |
Approx. 250 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
1/20000 s to 1/4 s |
| Gain | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
