Imaging Source DMK 27BUR0135 USB 3.0 Monochrome Industrial Camera
- 1/3 inch On Semiconductor CMOS sensor (AR0135)
- 1,280×960 (1.2 MP), up to 60 fps
- Global shutter
- Trigger and I/O inputs
- Windows and Linux software included
$263.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads

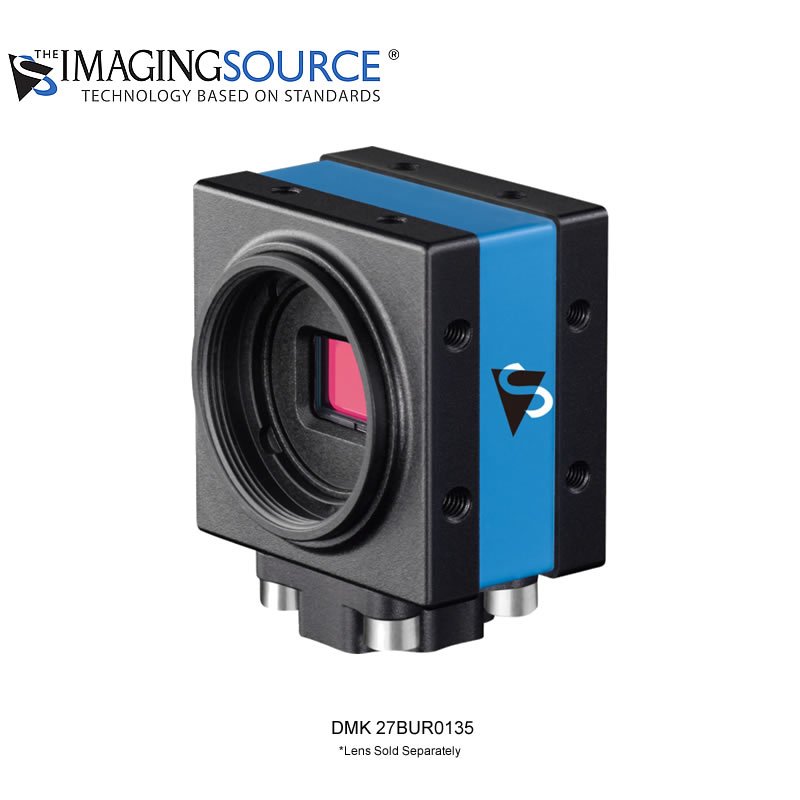

Imaging Source DMK 27BUR0135
USB 3.0 Monochrome Industrial Camera
The Imaging Source DMK 27BUR0135 USB 3.0 monochrome industrial camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications.
The color camera ships with the very sensitive 1/3 inch On Semiconductor CMOS sensor (AR0135). With up to 60 images per second, the DMK 27BUR0135 is a highly versatile imaging solution. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.
The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMK 27BUR0135 to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.
| Dynamic Range | |
|---|---|
| Video Format |
1280 × 960 (1.2 MP) Y16 @ 60 fps, 1280 × 960 (1.2 MP) Y800 @ 60 fps |
| IR-Cut Filter |
No |
| Sensor Type | |
| Sensor Specification |
onsemi AR0135 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
1.2 MP |
| Resolution | |
| FPS |
60 FPS |
| Mono/Color |
Monochrome |
| Iris | |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.75 VDC to 5.25 VDC |
| Current Consumption |
Approx. 250 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
000 s to 1 s, 1/10 |
| Gain | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
