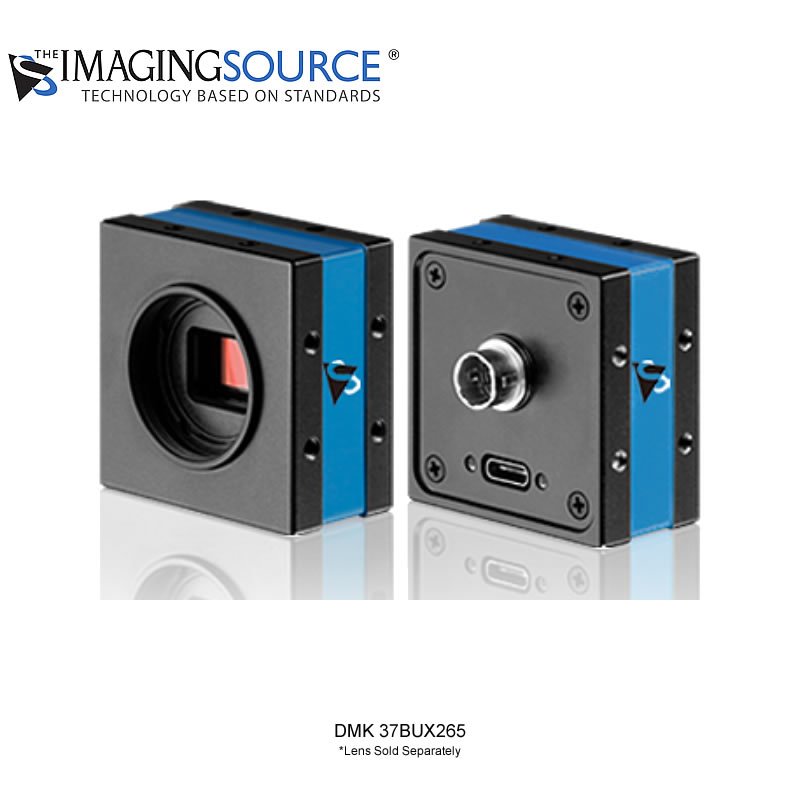

Imaging Source DMK 37BUX265 USB 3.1 Monochrome Industrial Camera
- 1/1.8 inch Sony CMOS Pregius sensor (IMX265LLR)
- 2,048x1,536 (3.1 MP), up to 60 fps
- Global shutter
- Trigger and I/O inputs
- Pixel Size: H: 3.45 µm, V: 3.45 µm
$725.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
Imaging Source DMK 37BUX265
USB 3.1 Monochrome Industrial Camera
The Imaging Source DMK 37BUX264 USB 3.1 Color Industrial Cameras are equipped with highly-sensitive, low-noise Sony IMX265LLR global-shutter sensors which offer exceptional distortion-free image quality and color fidelity. This camera supports the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Also available in color, the cameras feature a compact and robust industrial design and support applications such as intelligent traffic systems (ITS), inspection tasks and automation as well as microscopy. Additionally, their sensor sizes (2/3″ and 1/1.8″) mean they are easily combined with a variety of low-priced standard industrial lenses available.
| Dynamic Range | |
|---|---|
| Video Format | |
| IR-Cut Filter |
No |
| Sensor Type | |
| Sensor Specification |
Sony IMX265 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
3.1 MP |
| Resolution | |
| FPS |
60 FPS |
| Mono/Color |
Monochrome |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.75 VDC to 5.25 VDC |
| Current Consumption |
Approx. 360 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
1 µs to 4 s |
| Gain | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
