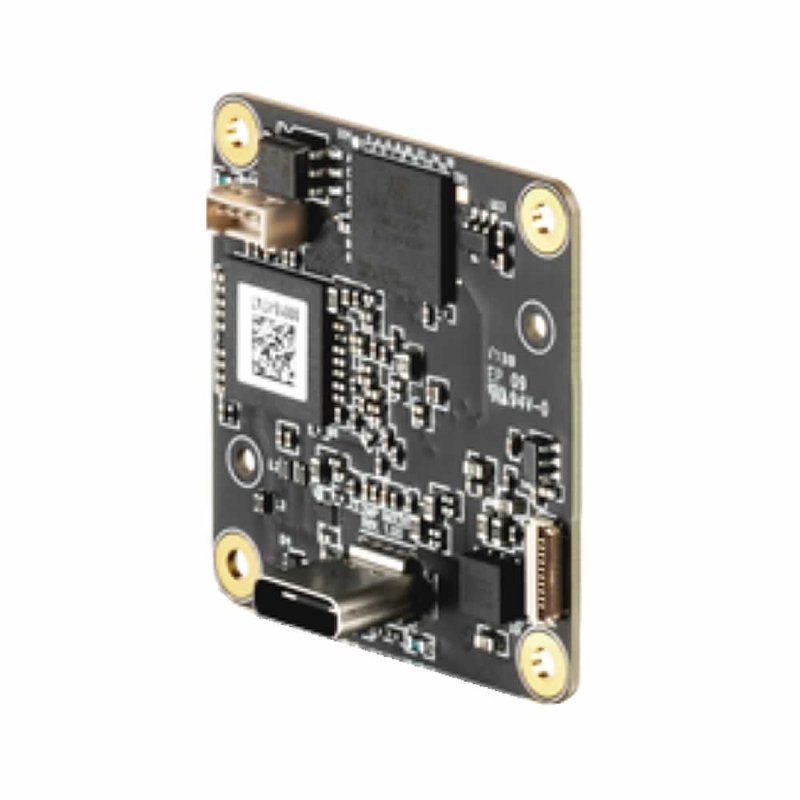

Imaging Source DMM 37UX264-ML USB 3.1 Monochrome board camera
- 2/3 inch Sony CMOS Pregius sensor (IMX264LLR)
- 2,448×2,048 (5 MP), up to 38 fps
- Global shutter
- Trigger and I/O inputs
- Windows and Linux software included
$776.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
Drivers
DMM 37UX264-ML USB 3.1 Monochrome board camera
The DMM 37UX264-ML USB 3.1 Monochrome Board Cameras are equipped with highly-sensitive, low-noise Sony Pregius (IMX264LLR) global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.
The 5 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust design and support applications.
Additionally, their sensor size (2/3″) means they are easily combined with a variety of low-priced standard industrial lenses available.
| Dynamic Range | |
|---|---|
| Video Format | |
| IR-Cut Filter |
No |
| Sensor Type | |
| Sensor Specification |
Sony IMX264 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
5 MP |
| Resolution | |
| FPS |
38 FPS |
| Mono/Color |
Monochrome |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.75 VDC to 5.25 VDC |
| Current Consumption |
Approx. 360 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
1 µs to 4 s |
| Gain | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
