Teledyne FLIR PTU-5 High Performance Pan-Tilt Unit
- Payload Capacity: 5 lb. Top Mount (6 lb. Side Mount)
- Pan Range: 360° Continuous
- Tilt Range: 90°
- Accuracy: 0.1°
- Voltage: 12-30 VDC
- Weight: 4.7 lb. (~2.1 kg)
- Dimensions: 6.2 x 4.9 x 6 in (~158 x 125 x 153 mm)
- IP67 Rated
$3,550.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
FLIR PTU-5
PAN/TILT FOR TOP-MOUNTED PAYLOADS UP TO 5 LBS
Standing only six inches tall when fully integrated, the new FLIR PTU-5 can hold up to five pounds on its top bracket, packing incredible performance into a compact package. Even with its small size the PTU-5 is more accurate than many other – more expensive – systems thanks to the absolute encoders used on the drive axes.
Fully sealed and weatherproof rated to IP67, the PTU-5 can be used anywhere, even outdoors. By doing away with the separate controller box, and including a unique ability to home the axes without returning to zero, the PTU-5 is easy to set-up and has a fast start-up sequence. PTU-5 is the lightweight, low-cost, easy to integrate pan/tilt solution demanding OEM integrators have been looking for.
Big Performance, Small Package
CLASS-LEADING SPEED AND ACCURACY
Turn on and track moving targets in seconds with accuracy and repeatability to 0.1°, and Pan speeds up to 150 degrees per second.
Turn on and track moving targets in seconds with accuracy and repeatability to 0.1°, and Pan speeds up to 150 degrees per second.
EXTRA SMALL, RUGGED, PORTABLE DESIGN
Lightweight, MIL-spec system for harsh environments, an integrated micro controller – so no extra boxes are needed — plus it’s weatherproof and IP67 certified.
Lightweight, MIL-spec system for harsh environments, an integrated micro controller – so no extra boxes are needed — plus it’s weatherproof and IP67 certified.
EASY INTEGRATION
Featuring flexibility for a wide range of applications and sensors, a slip ring enabling continuous rotation, and top or side bracket options.
Featuring flexibility for a wide range of applications and sensors, a slip ring enabling continuous rotation, and top or side bracket options.

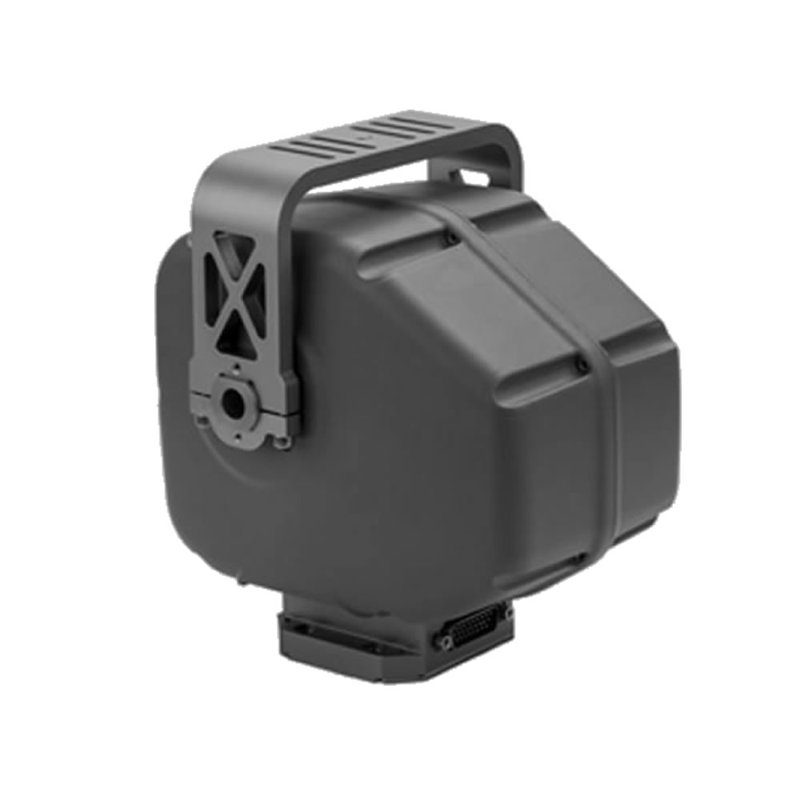

TOP MOUNTING BRACKETS (TMB)
TOP PAYLOAD CAPACITY

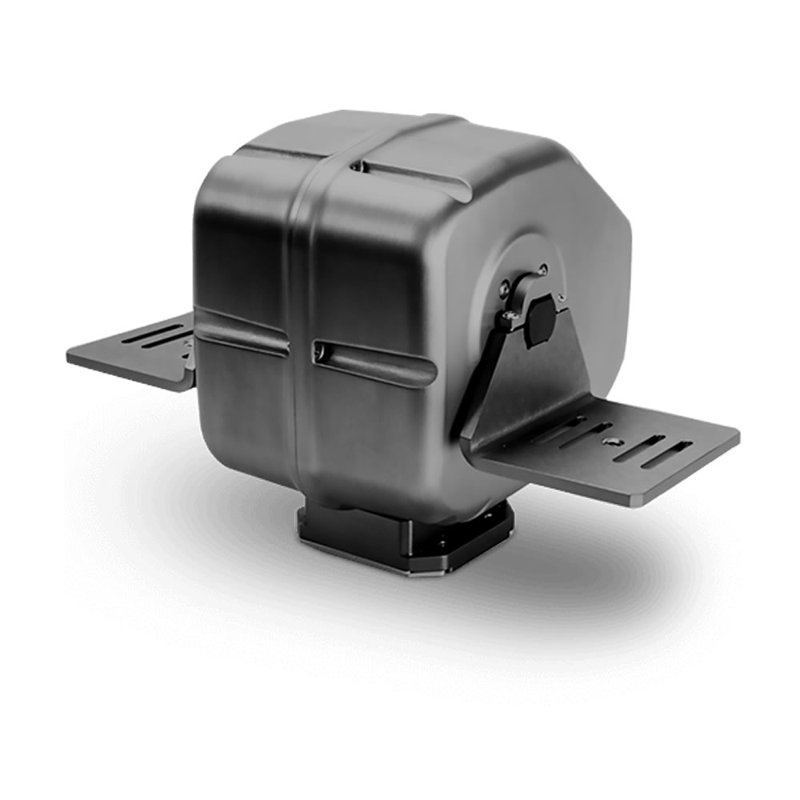

SIDE MOUNTING BRACKETS (SMB)
SIDE PAYLOAD CAPACITY
TOTAL PAYLOAD CAPACITY
BRACKET NOTES
Included
5 lbs / 2.2 kg
1 or 2 SMBs can be purchased & installed
6 lbs / 2.7 kg
The combined weight of top and side payloads (if using both) cannot exceed the side payload capacity rating
Top & side brackets cannot be used together — the bracket clamp allows only one type at a time
| Pan Resolution | |
|---|---|
| Tilt Resolution | |
| Input Voltage |
12-30 VDC, 12-30 VDC unregulated (fastest performance and torque @ 30 VDC) |
| Power Consumption | |
| Payload Mounting | |
| Slipring | |
| Weight | |
| Interface Controls |
Built-in Ethernet (TCP/IP or web), Pelco D, serial (RS-485, RS-422). SDK Available |
| Wiring Configuration | |
| Operating Temperature | |
| Standards | |
| ECCN Code |
