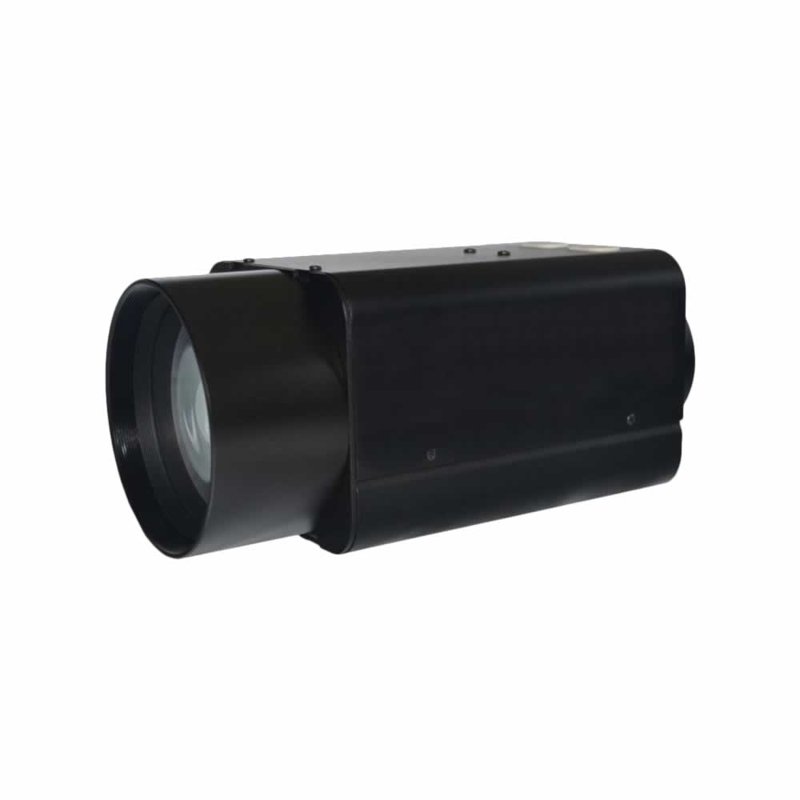

HIRMP8-154M Series
- 18x (8.6-154mm) Infrared Corrected Motorized Zoom Lens
- Special Low Dispersion Glass
- 2 Megapixel Lens
- 1/1.9″ sensor
- f = 8.6 – 154mm
- F2.5
- Full HD
- True NIR
- OPTIONS: Manual Override Iris Potentiometer
- C-Mount
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
HIRMP8-154M Series
The HIRMP8-154 lenses are powerful 2 megapixel infrared (IR) corrected motorized zoom lenses. The IR corrected SD Glass (special low dispersion glass) has lower chromatic abberation than ED glass (extra-low dispersion glass) which allows the lens to always stay in focus, from visible light to infrared light. With a 8-85mm focal length the HIR8-85 can benefit almost any application. Designed to fit a C-Mount camera with a 1/2″ CCD or smaller, this can also be used on a CS-Mount camera with an additional C/CS adapter.
| Range Testing
|

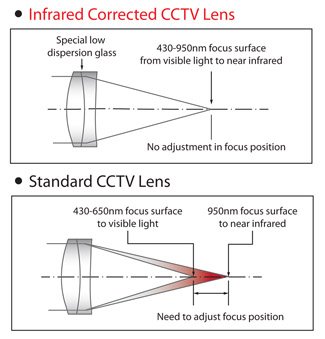

Special Low Dispersion Glass
|
|
| Visible Lens vs. IR Corrected Lens: Notice with this IR Corrected lens utilizing the Haze Filter: You can see through haze revealing details in the mountains. |
||
 Visible Mode vs IR Corrected Mode with Haze Filter |
 Visible Mode vs IR Corrected Mode with Haze Filter |
|
| Format | |
|---|---|
| Lens Mount | |
| Focal Length | |
| Maximum Aperture | |
| Iris | |
| Minimum Focus Distance | |
| Focus | |
| Angle of View |
(Diagonal) 48.9° (W) / 3.0° (N) |(Horizontal) 40.6° (W) / 2.4° (N) |(Vertical) 30.8° (W) / 1.8° (N) |
| Back Focal Length | |
| Temperature Range | |

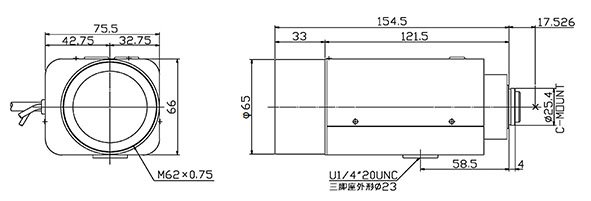

| Dimensions (H x W x L) | |
| Weight |
