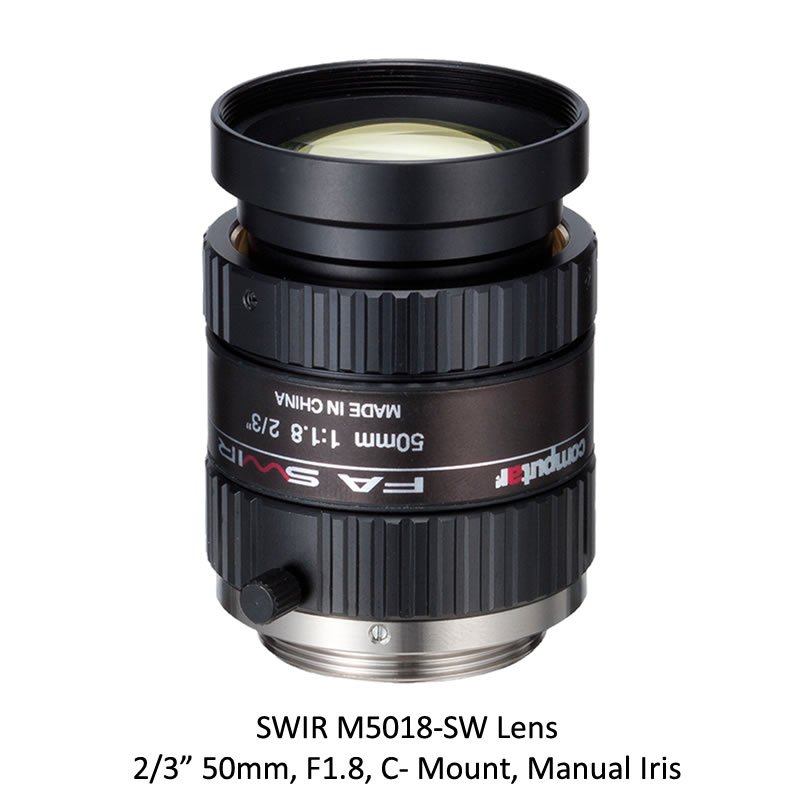

SWIR M5018-SW 2/3 in. 50mm, F1.8, C- Mount, Manual Iris
$652.17
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
SWIR (Short Wave Infrared) Lenses are specifically designed for Machine Vision applications in NIR and SWIR.
- Unique coating technology delivers high transmission from 800nm-1,700nm
- High-resolution, low-distortion design offers Megapixel clarity in hyperspectral application
- Also available in 16mm, 25mm and 35mm
- Designed around the popular φ12.3mm image circle format
- The industry’s most compact form factor. Fits in most applications
- Compatible with FLIR TAU SWIR
| Model No. | M5018-SW | |
| Focal Length | 50mm | |
| Max. Aperture Ratio | 1:1.8 | |
| Max. Image Circle | φ12.3mm | |
| Operation Range | ||
| Iris | F1.8‐ F16C | |
| Focus | 0.6m ‐ Inf. | |
| Control | ||
| Iris | Manual | |
| Focus | Manual | |
| Object Dimension at M.O.D | ||
| 2/3 type | 10.4cm x 7.8cm | |
| 1/2 type | 7.6cm x 5.7cm | |
| Angle of View | ||
|
D |
2/3 type H8.80mm x V6.60mm | 13.0° |
| H | 10.4° | |
| V | 7.8° | |
| D | 1/2 type H6.40mm x V4.80mm | 9.5° |
| H | 7.6° | |
| V | 5.7° | |
| Angle of View ( InGaAs Detector) |
||
| D | 640 x 512 （Pixel Pitch ： 15μm） H9.60mm x V7.68mm |
14.5° |
| H | 11.3° | |
| V | 9.1° | |
| D | 320 x 256 （Pixel Pitch ： 25μm） 8.00mm x V6.40mm |
12.1° |
| H | 9.5° | |
| V | 7.6° | |
| D | 320 x 256 （Pixel Pitch ： 20μm） H6.40mm x V5.12mm |
9.7° |
| H | 7.6° | |
| V | 6.1° | |
| Operating Temperature | -10℃ ‐ +50℃ | |
| Effective Lens Aperture | ||
| Front | φ25.5mm | |
| Rear | φ9.6mm | |
| Distortion | ||
| 2/3 Type | -0.3% (y=5.5) | |
| 1/2 Type | -0.1% (y=4.0) | |
| Back Focal Length | 13.6mm | |
| Flange Back Length | 17.526mm | |
| Mount | C-Mount | |
| Filter Size | M30.5 P=0.5mm | |
| Dimensions | φ33.5mm x 38.2mm | |
| Weight | 85g | |
