Teledyne FLIR PT-617 HD VISIBLE AND THERMAL PAN/TILT
Thermal Camera
- Array Format (NTSC): 640 x 480
- Field of View: 17°(H) x 14°(V)
- Focal Length: 35 mm
- Spectral Range: LWIR 7.5 μm – 13.5 μm
- Detector Type: Uncooled VOx Microbolometer
- Pixel Pitch: 17 μm
- Thermal Frame Rate NTSC: 30 Hz
- Effective Resolution: 307,200
Visible Camera
- Array Format (NTSC): 1080p HD
- Field of View: 63.7° (wide) to 2.3° (tele)
- Focal Length: 4.3 mm (wide) to 129.0 mm (tele)
- Sensor Type: Full HD 1080p 1/2.8-type Exmor R CMOS
- Iris Range: F1.6 to F4.7
- Zoom: 30x Optical Zoom with Auto Focus
This product has been marked EOL (end of life).
$33,259.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
Triton™ PT-617 HD
HD VISIBLE AND THERMAL PAN/TILT
The Teledyne FLIR Triton™ PT-617 HD is the most advanced dual-sensor security system, combining a uncooled 640 × 480 resolution thermal sensor, a 1080p HD visible-light imaging sensor, and a high speed, precision pan/tilt system. The Triton PT-617 HD integrates easily with major third party video management systems, making it an extremely versatile solution for critical infrastructure protection in total darkness, bright sun, and adverse conditions.
Protect Perimeters Anytime, Anywhere
SUPERIOR IMAGE QUALITY
The Triton PT-Series HD’s thermal camera offers up to a 14x continuous zoom, while the low light HD camera has a 30x optical zoom.
RUGGED HOUSING
The weather-resistant housing includes de-icing and de-fogging capabilities, plus a changeable thermal payload cassette that significantly reduces maintenance time.
DESIGNED FOR SYSTEM INTEGRATION
When controlled using FLIR United VMS, enhanced capabilities are enabled, including automated PTZ tracking and fixed camera-target hand off.
Follow intruders between fixed and pan/tilt FLIR cameras
FLIR PT-644 HD thermal camera detects intrusions at great distances. When a PT-644 HD is deployed along with multiple fixed FLIR cameras, a FLIR TRK analytics encoders, and FLIR United VMS, a target moving out of the field of view of a fixed camera can automatically be “handed-off” and tracked by the PT-644 HD.

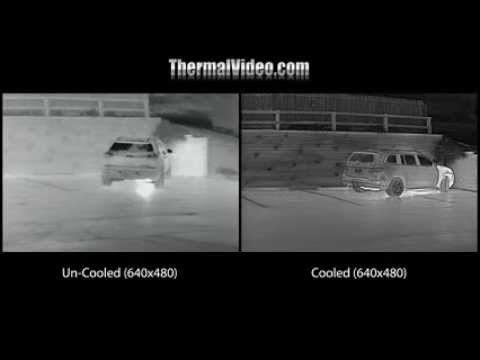

Video shows uncooled vs cooled thermal.
Video showing vehicle through Thermal MWIR Cooled Thermal from the FLIR PT-602CZ HD.
FLIR PT-Series Range of Motion.
FLIR PT-Series HD Features
Dual Sensor Mode Users gain a full set of viewing and control options, including the industry-leading, dual-sensor viewing mode.
Presets and Alarms Fully-programmable preset tour and alarm functions are available
Exchangeable Camera Cassettes Enjoy quick upgrades or repair of sensors and optics
Pan / Tilt Performance Continuous 360° pan with tilt angle/speed of +90° to -90°, and accurate pre-set repeatability
Open IP The open IP standard allows for plug-and-play integration and is ONVIF compliant
On Screen Features The PT-Series HD offers Picture-in-Picture, Auto-tracking detection on preset, click-and-track, and hand off from a fixed camera
| Detector Type | |
|---|---|
| Dimensions (L x W x H) | |
| Frame Rate | |
| Input Voltage | |
| Power Consumption | |
| Resolution | |
| Thermal Effective Resolution | |
| Thermal E-Zoom |
Continuous E-Zoom to 4× |
| Thermal Focus Range | |
| Pixel Pitch | |
| Spectral Band | |
| Weight | |
| Zoom | |
| De-Icing/Anti-Icing | |
| Humidity | |
| IP Rating | |
| Operating Temperature Range | |
| Shock | |
| Storage Temperature Range | |
| Vibration | |
| Programmable Presets | |
| Sensor Type | |
| Pan Angle/Speed | |
| Tilt Angle - Speed | |
| Ethernet | |
| External Analytics Compatible | |
| Network APIs | |
| Serial Control Interfaces | |
| Supported Protocols |
IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SCP |
| Focal Length - Thermal | |
| Thermal Image Settings | |
| Composite Video NTSC or PAL | |
| Video Compression | |
| Video Image Uniformity Optimization |
Automatic Flat Field Correction (FFC) – Thermal and Temporal Triggers |
| Video Streaming | |
| Video Thermal AGC Modes |
Linear AGC, Histogram AGC, Dynamic Detail Enhancement (DDE), Sensitivity |
| Video Thermal AGC Region of Interest [ROI] |
Default, Presets and User definable to insure optimal image quality on subjects of interest |
| Field of View | |
| f-number | |
| Focal Length | |
| Lens Field of View | |
| Low Light Sensitivity | |
| Noise Reduction | |
| Sensitivity | |
| Sensor Illumination | |
| WDR |
