Low Profile BOSON VPC Interface Module with optional EXT. Sync in/out
- VPC – Video, Power & Communication
- 5 to 26Volts DC Input
- Reverse Polarity Protected
- Power via USB
- USB Video Support
- Stream Video to PC via USB
- 2 Composite Video Outputs
- Ext. Video SYNC In/Out Option
- Low Profile
- Works with Boson 320 or 640 Version
$129.95
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
Comparison

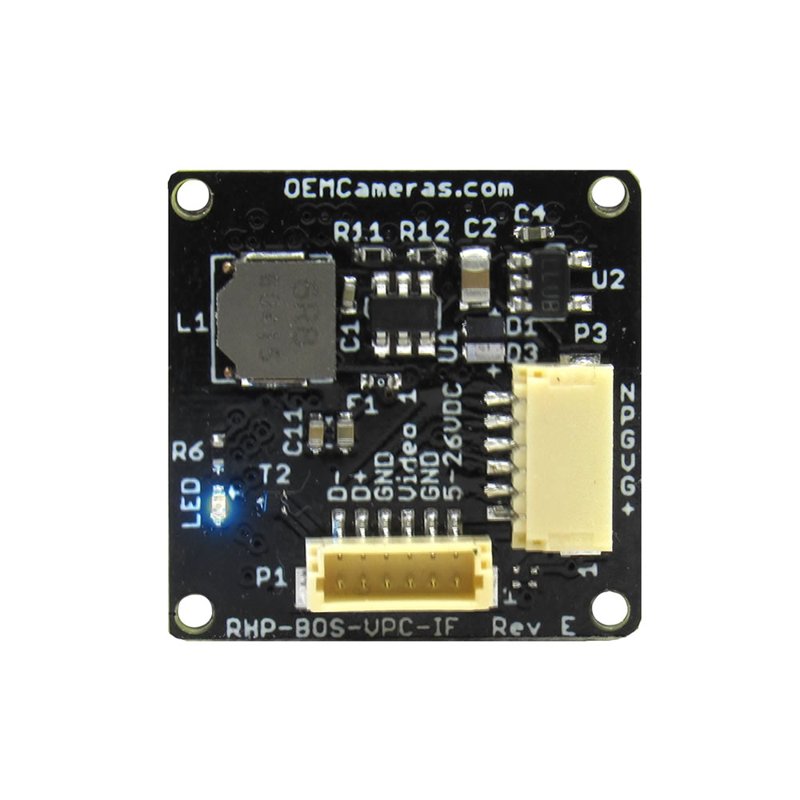

RHP-BOS-VPC-IF
Video Power Communication Interface

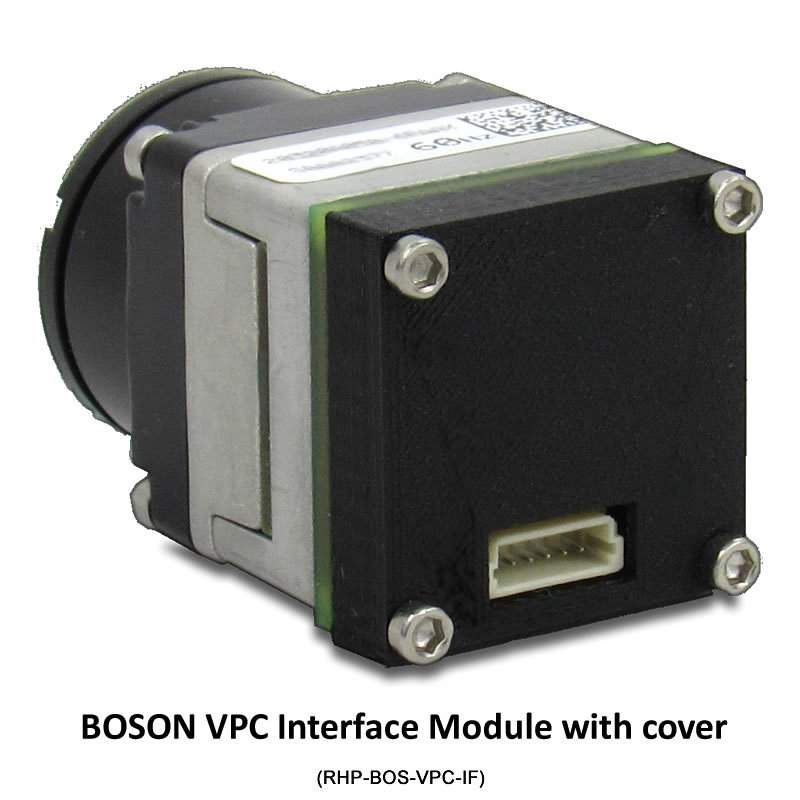

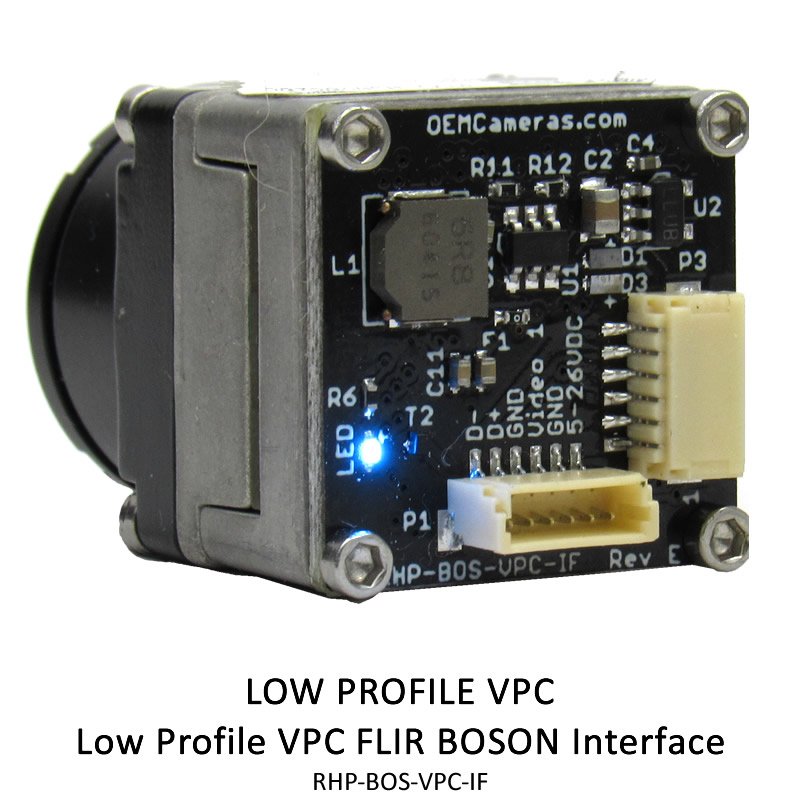

The RHP Boson VPC Interface is a remarkable low profile electronic module geared towards offering simple integration with the FLIR Boson. Its cutting-edge design includes reverse polarity protection, which secures your device from any irreversible damage due to voltage. It features 5 to 26v input, a vital function that enables this interface module to deliver consistent power for extended use.
Its USB video support allows you to stream video via USB, and the Sync in/out ensures synchronization with other devices. Experience seamless performance with this efficient and dependable interface module.
Simple Integration

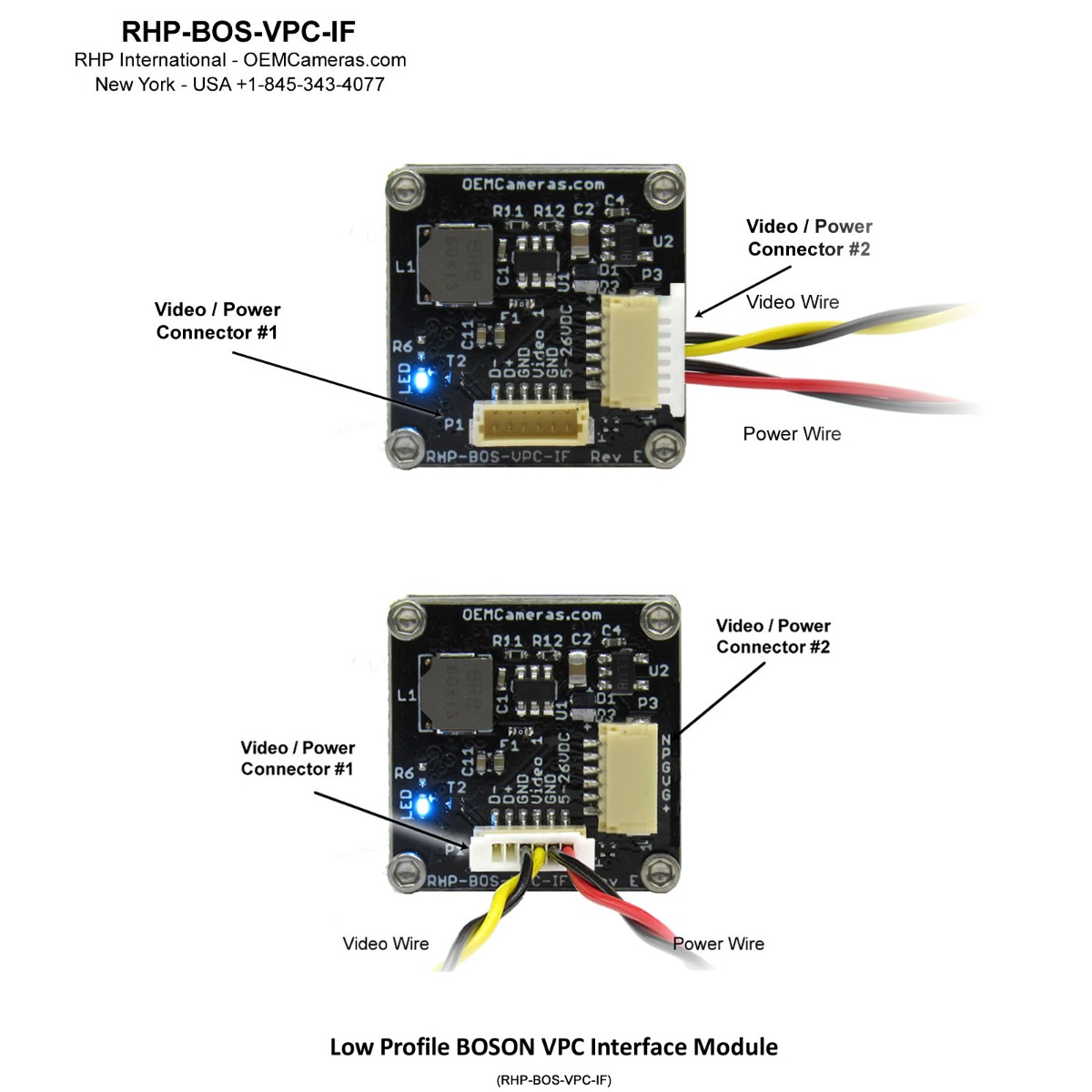

The Low Profile Boson VPC Interface Module simplifies integration. Two alternate Video & Power connections on the Low Profile Boson VPC Interface Module allows for a variety of installation options.
FLIR Boson GUI Friendly
You can adjust all the parameters available on the FLIR Boson using the FLIR Boson GUI when connected to your PC via the supplied USB cable.
Reverse Polarity Protected
With the intelligent polarity sensing protection, the RHP-BOS-VPC-IF can be powered from the alternate 6-Pin JST ports to USB or a 5-26VDC power source
* Please Note: External Sync is disabled on Boson ≤9Hz Cameras.
The use of external sync on these cameras is not supported because pulses cannot be correlated to a specific output frame because of the way the reduced frame rate video is created. If attempted, the camera will reject commands to begin external sync mode.

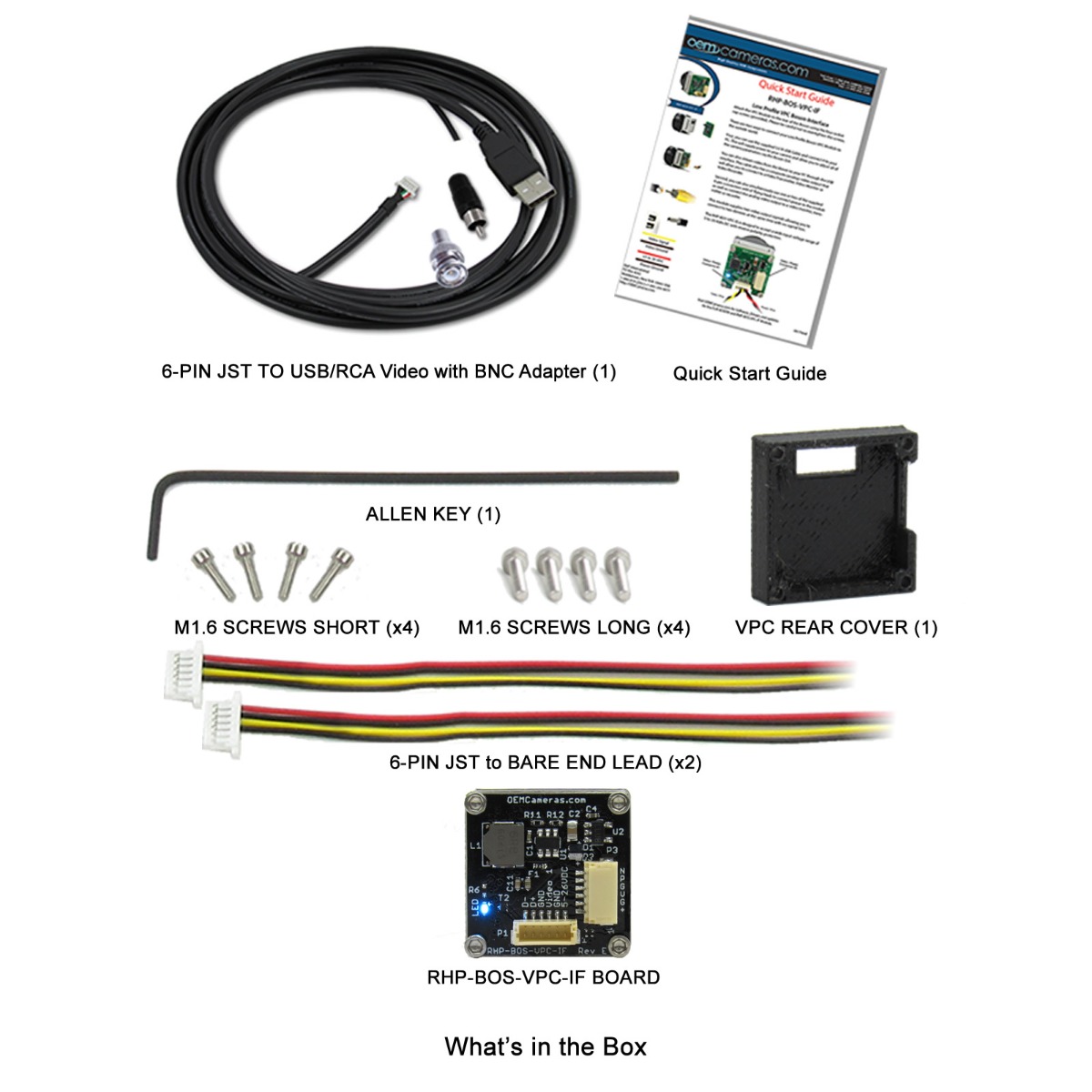

This kit includes:
- 6-PIN JST to USB/RCA Video cable (x1)
- 6-PIN JST to Bare End Leads (x2)
- M1.6 Screws (x4)
- Allen Key (x1)
- RHP BOS VPC-IF Board (x1)
- Quick Start Guide (x1)
| Power Requirements: | 5 Volts DC – 25 Volts DC |
| Power Dissipated: | Avg. 0.84W – Max. 2W |
| Dimensions: | 21mm x 21mm |
| Weight: | 3 grams |
| Control: | USB 2.0 |
| Video Output: | NTSC 30Hz / PAL 25Hz (switchable via GUI) |
| Control Channels | |
|---|---|
| Connector | |
| GPIO Channels | |
| Power Dissipation |
<0.1W (Camera Not Included) 3.5W Max With Camera, 6W Total Fused |
| Operational Altitude |
12km (max altitude of a commercial airliner or airborne platform) |
| Operating Temperature Range | |
| Storage Temperature Range | |
| Mounting Features | |
| Video Channels |
2 Analog NTSC/PAL Switchable Outputs, USB Digital Video (switchable via GUI) |
| Weight | |
| Dimensions (L x W x H) | |
| What's In The Box | |
| Video Output Type |
USB |
| Voltage Input |
5-26 Volts DC |
| Video Sync |
- RHP-BOS-VPC-IF
- RHP-BOS-VPC3-IF
Video Power Communication Interfaces |
$129.00
RHP-BOS-VPC-IF
|
$159.00
RHP-BOS-VPC3-IF
|
Purpose |
Video, Power, Communication | Video, Power, Communication |
Power |
5 to 26Volts DC Input | 5 to 26Volts DC Input |
Reverse Polarity Protected |
✓ | ✓ |
Connection |
USB2 | USB3 |
Outputs |
2 Composite Video Outputs | Stream Video to PC via USB3 |
Video Support |
USB Video Support | USB3 Video Support |
Sync In/Out |
Ext. Video SYNC In/Out Optional | Ext. Video SYNC In/Out Optional |
| RHP-BOS-VPC-IF | RHP-BOS-VPC3-IF |
