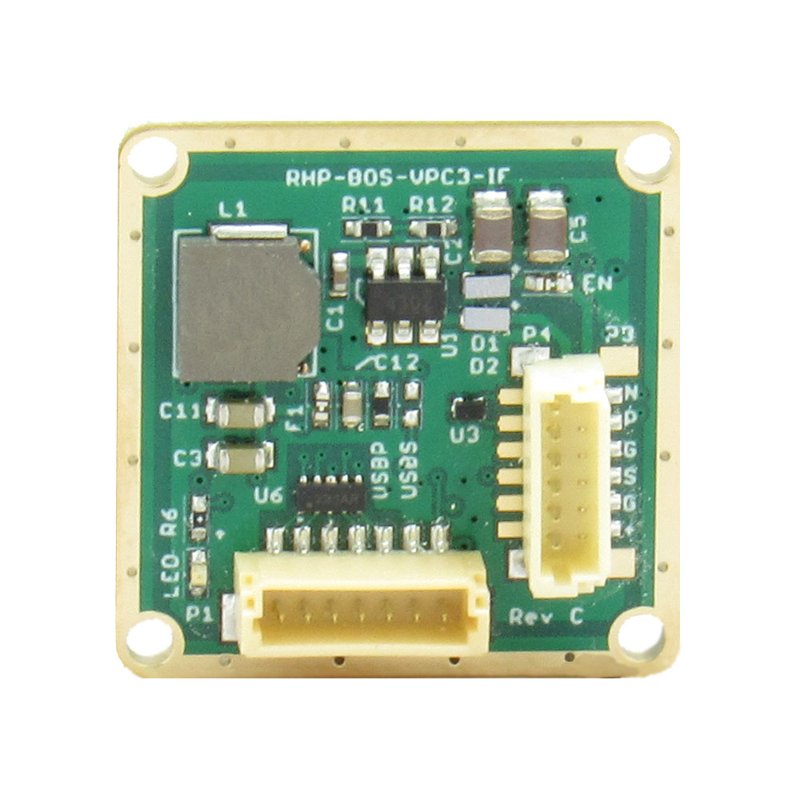

Low Profile BOSON VPC3 Interface Module with USB3
- Improved heat dissipation
- VPC – Video, Power & Communication
- 5 to 26Volts DC Input
- Reverse Polarity Protected
- Power via USB3
- USB3 Video Support
- Stream Video to PC via USB3
- Ext. Video SYNC In/Out Option
- Low Profile
- Works with Boson 320 or 640 Version
$159.99
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
Comparison
RHP-BOS-VPC3-IF – USB3
Video Power Communication Interface
Introducing the Low Profile VPC Interface Module, specifically designed for the FLIR Boson. With improved heat dissipation, this module ensures optimal performance in even the most demanding environments. With Video Power & Communication support and reverse polarity voltage protection, this module is compatible with power ranging from 5 to 26 volts DC. Power can be supplied via USB3, and video support is also available through USB3. Stream video to a PC via USB3 and enjoy seamless Sync-In/Out capabilities with this state-of-the-art interface module.
Simple Integration
The Low Profile Boson VPC Interface Module simplifies integration. Two alternate Video & Power connections on the Low Profile Boson VPC Interface Module allows for a variety of installation options.
FLIR Boson GUI Friendly
You can adjust all the parameters available on the FLIR Boson using the FLIR Boson GUI when connected to your PC via the supplied USB cable.
Reverse Polarity Protected
With the intelligent polarity sensing protection, the RHP-BOS-VPC-IF can be powered from the alternate 6-Pin JST ports to USB or a 5-26VDC power source
* Please Note: External Sync is disabled on Boson ≤9Hz Cameras.
The use of external sync on these cameras is not supported because pulses cannot be correlated to a specific output frame because of the way the reduced frame rate video is created. If attempted, the camera will reject commands to begin external sync mode.

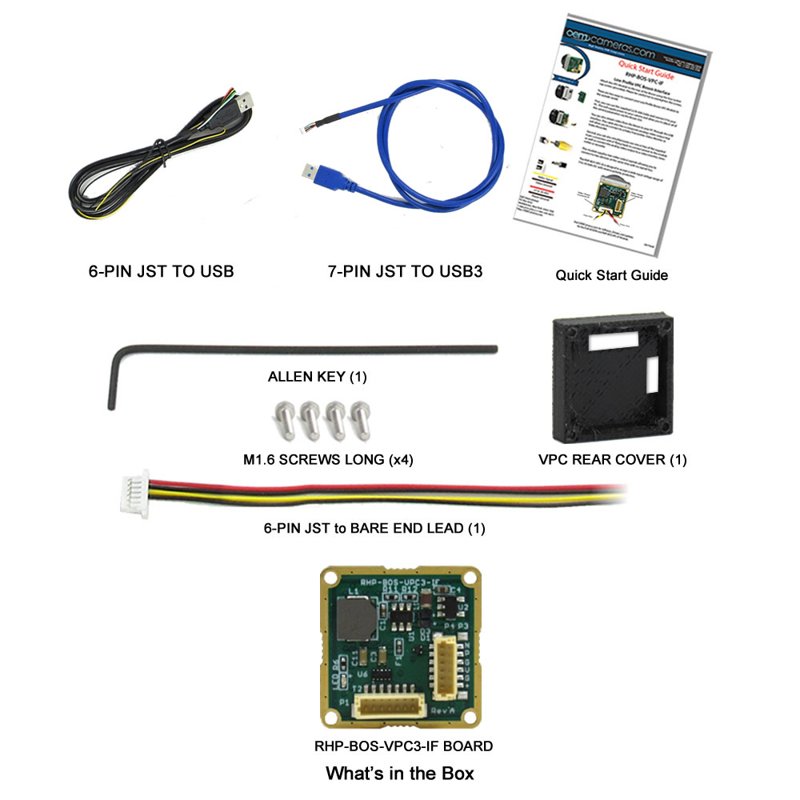

This kit includes:
- 6pin JST (USB2.0 + Sync)
- 7pin JST (USB3)
- M1.6 Screws (x4)
- Allen Key (x1)
- RHP BOS VPC3-IF Board (x1)
- Quick Start Guide (x1)
| Power Requirements: | 5 Volts DC – 25 Volts DC |
| Power Dissipated: | Avg. 0.84W – Max. 2W |
| Dimensions: | 21mm x 21mm |
| Weight: | 3 grams |
| Control: | USB 3.0 |

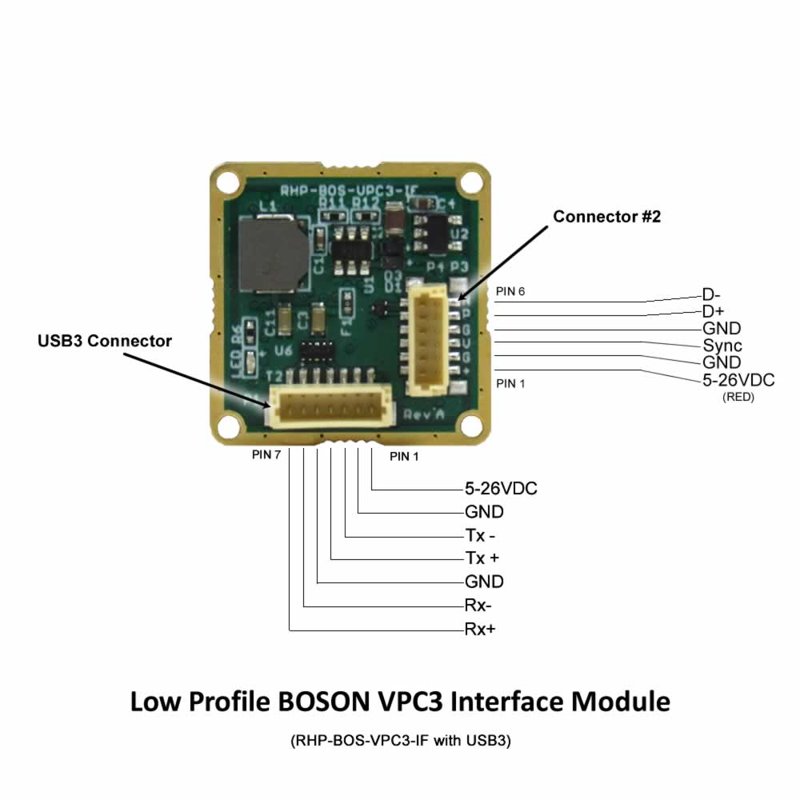

| Video Output: | 6pin JST (USB2.0 + Sync) and 7pin JST (USB3) |
| Control Channels | |
|---|---|
| Input Voltage | |
| Connector | |
| GPIO Channels | |
| Power Dissipation |
<0.1W (Camera Not Included) 3.5W Max With Camera, 6W Total Fused |
| Operational Altitude |
12km (max altitude of a commercial airliner or airborne platform) |
| Operating Temperature Range | |
| Storage Temperature Range | |
| Mounting Features | |
| Video Channels | |
| Weight | |
| Dimensions (L x W x H) | |
| Video Output Type |
USB-3 |
- RHP-BOS-VPC-IF
- RHP-BOS-VPC3-IF
Video Power Communication Interfaces |
$129.00
RHP-BOS-VPC-IF
|
$159.00
RHP-BOS-VPC3-IF
|
Purpose |
Video, Power, Communication | Video, Power, Communication |
Power |
5 to 26Volts DC Input | 5 to 26Volts DC Input |
Reverse Polarity Protected |
✓ | ✓ |
Connection |
USB2 | USB3 |
Outputs |
2 Composite Video Outputs | Stream Video to PC via USB3 |
Video Support |
USB Video Support | USB3 Video Support |
Sync In/Out |
Ext. Video SYNC In/Out Optional | Ext. Video SYNC In/Out Optional |
| RHP-BOS-VPC-IF | RHP-BOS-VPC3-IF |
