Low Profile Lepton USB VPC Interface Module
- VPC – Video, USB Power & Communication
- Power via 5Volt USB
- USB Video Support
- Stream Video to PC via USB
- Low Profile

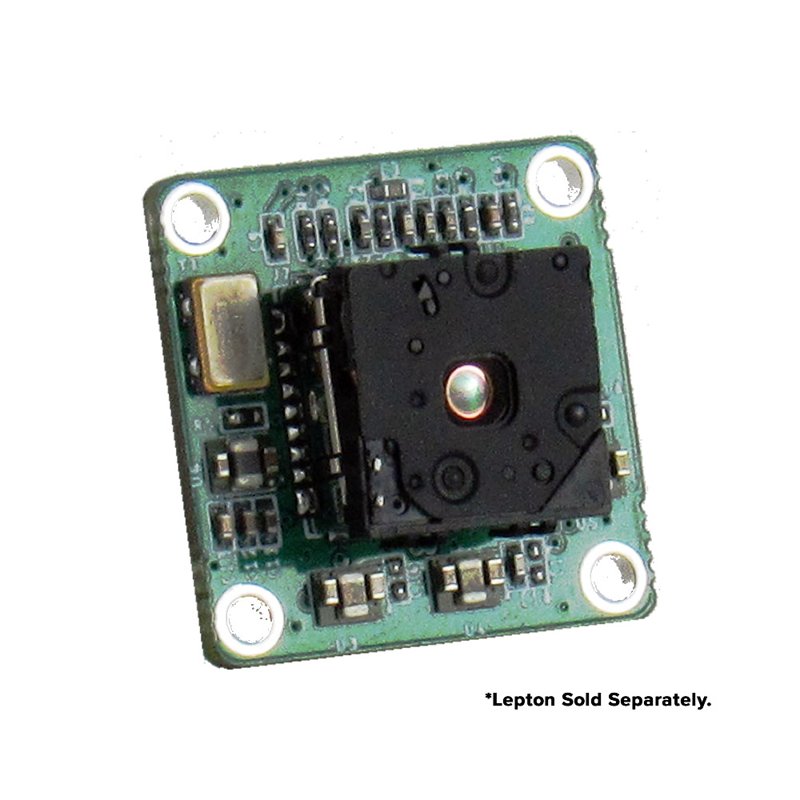

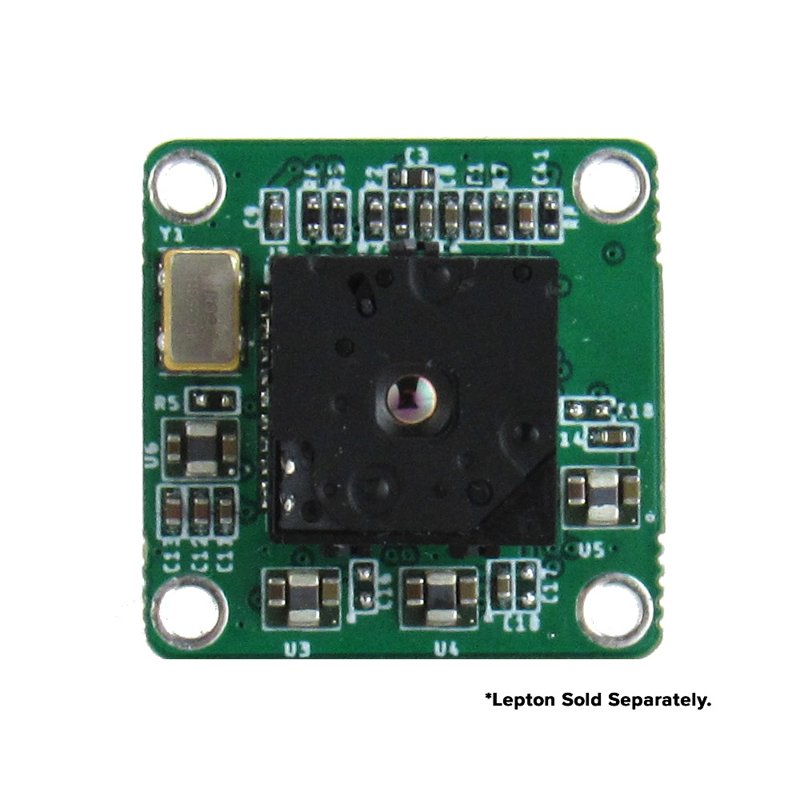

- Works with FLIR Lepton 3.5 radiometric
$95.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications

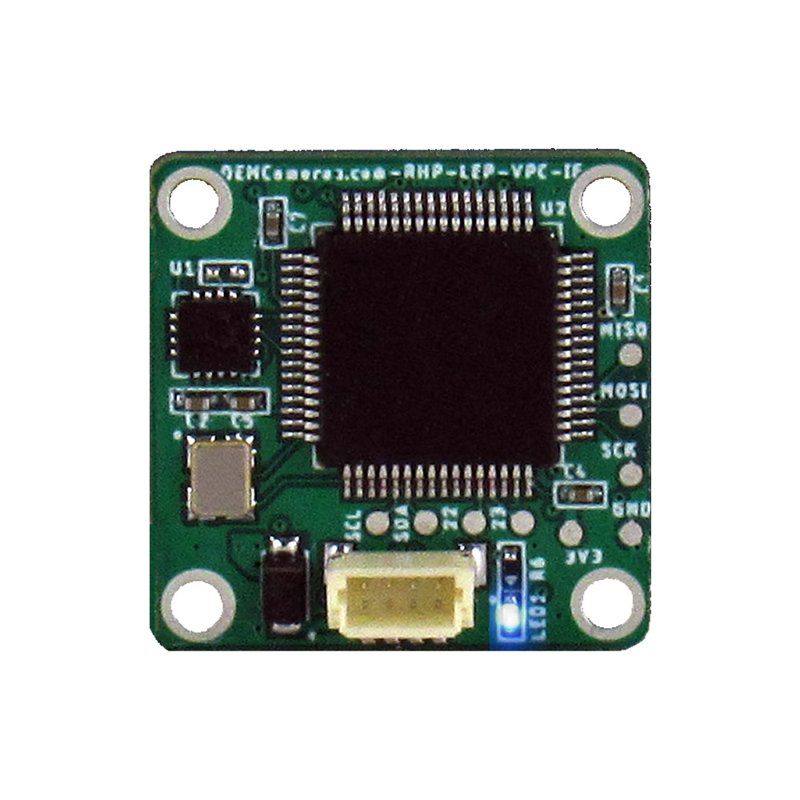

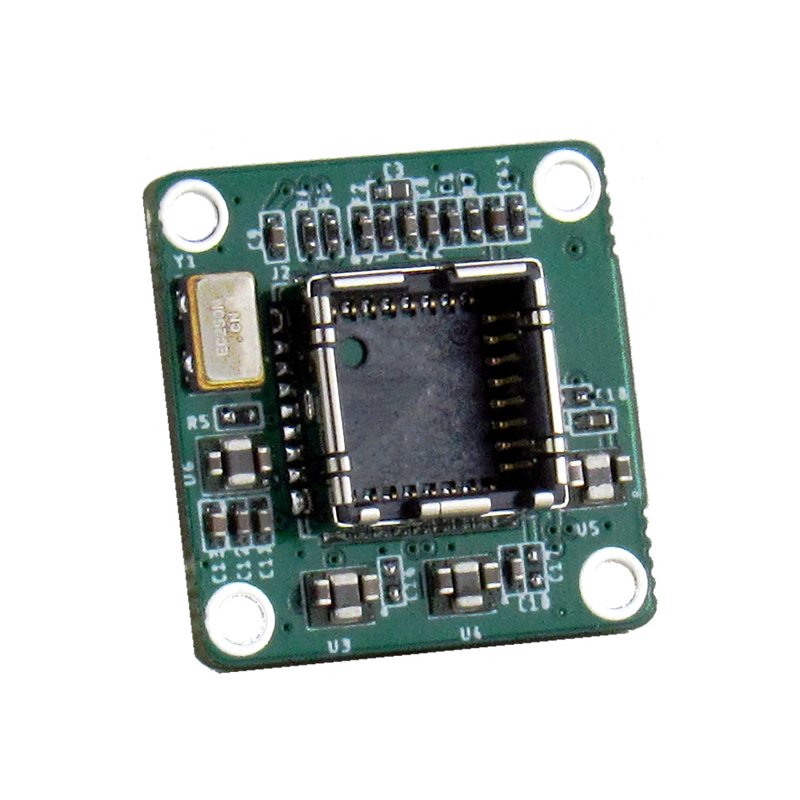

RHP-LEP-VPC-IF
USB Video Power Communication Interface
Simple Integration
The Low Profile Lepton VPC Interface Module simplifies integration. One Video & Power connection on the Low Profile Boson VPC Interface Module allows for a variety of installation options.
FLIR Lepton GUI Friendly
You can adjust parameters available on the FLIR Lepton using the RHP Lepton GUI when connected to your PC via the supplied USB cable.
Reverse Polarity Protected
With the intelligent polarity sensing protection, the RHP-LEP-VPC-IF can be powered from the 4-Pin JST port to USB 5VDC power source.
| Power Requirements: | 5 Volts DC USB |
| Power Dissipated: | Avg. 0.84W – Max. 2W |
| Dimensions: | 21mm x 21mm x 10mm (without Lepton) 21mm x 21mm x 13mm (with Lepton) |
| Weight: | 2.6 grams |
| Control: | USB 2.0 |
| Control Channels | |
|---|---|
| Input Voltage | |
| Connector | |
| Power Dissipation |
<0.1W (Camera Not Included) 3.5W Max With Camera, 6W Total Fused |
| Operating Temperature Range | |
| Storage Temperature Range | |
| Video Channels | |
| Weight | |
| Dimensions (L x W x H) |
