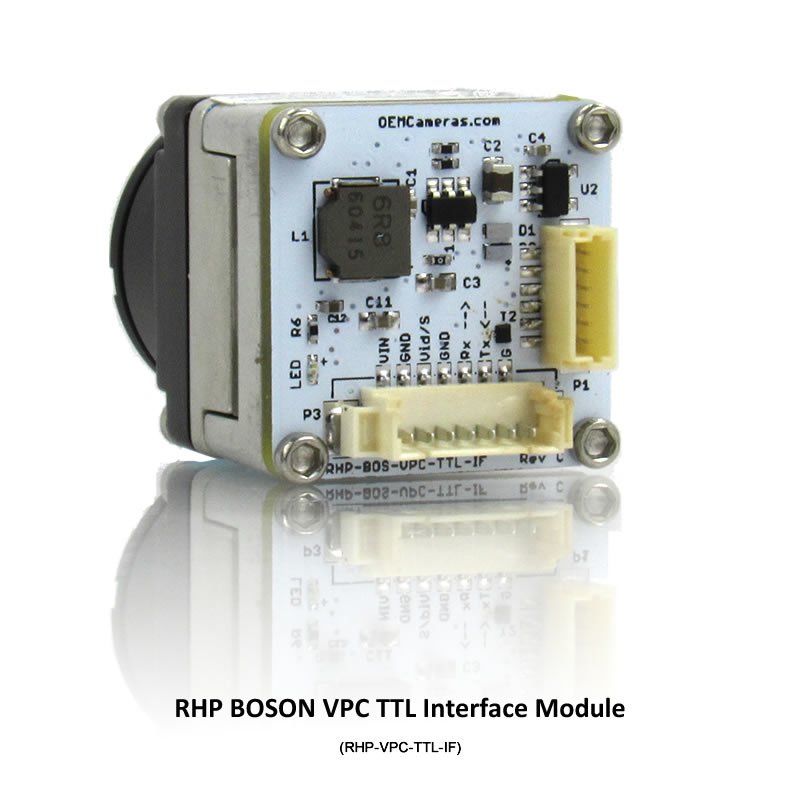

RHP BOSON VPC TTL Interface Module
- VPC – Video, Power & Communication
- USB or TTL Communication
- Power via USB or 5 to 26Volts DC Input
- Reverse Polarity Protected
- USB Video Support
- Stream Video to PC via USB
- 2 Composite Video Outputs
- Available with Sync Input/Output
- Low Profile
- Alternate connection ports
$149.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
Comparison
RHP-BOS-VPC-TTL-IF
Video Power Communication (VPC) Transistor-Transistor Logic Interface Module
The RHP BOS VPC TTL Interface is an indispensable module for achieving cohesive and uninterrupted video communication. Its low-profile design boasts both USB and TTL connection capability, rendering it an effortless interface for video and power communication needs. In addition to its user-friendly functionalities, this interface module ensures consistent and dependable performance, courtesy of its reverse polarity protected 5-26 volt input. Furthermore, the VPC TTL Interface Module offers added versatility with two composite video outputs and an alternate USB video output. Sync can also be enabled in lieu of video output, for one or both connectors.
Power Protection

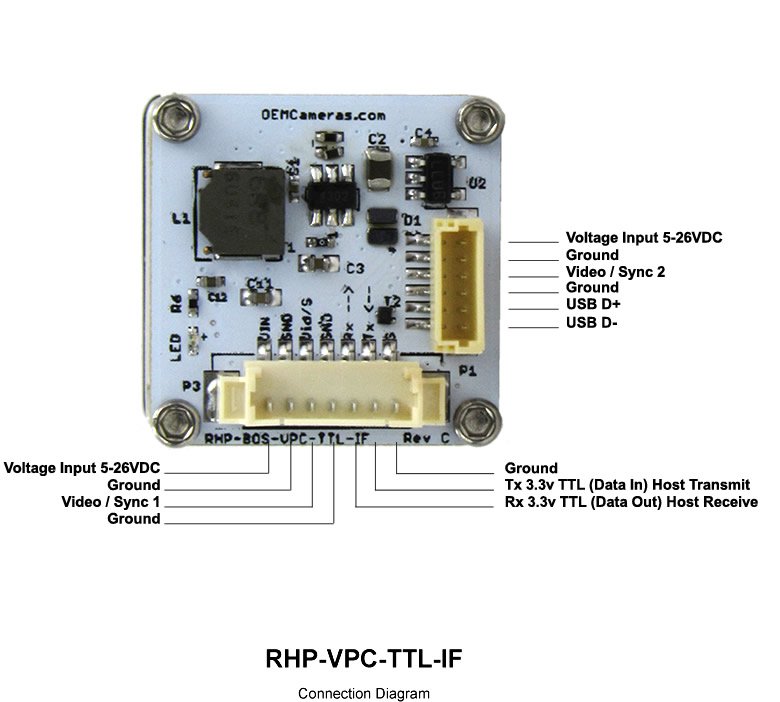

With the intelligent polarity sensing protection, power can be provided via the USB connection or DC Voltage using the provided 6-Pin Video/Power cable or the 7-Pin Pico Blade cable.
3 Video Output Options
Video can be viewed through either the supplied JST to USB/Video cable, JST to Bare End Lead cable or 7-Pin Pico Blade to Bare End Lead cable.
Sync Ready*

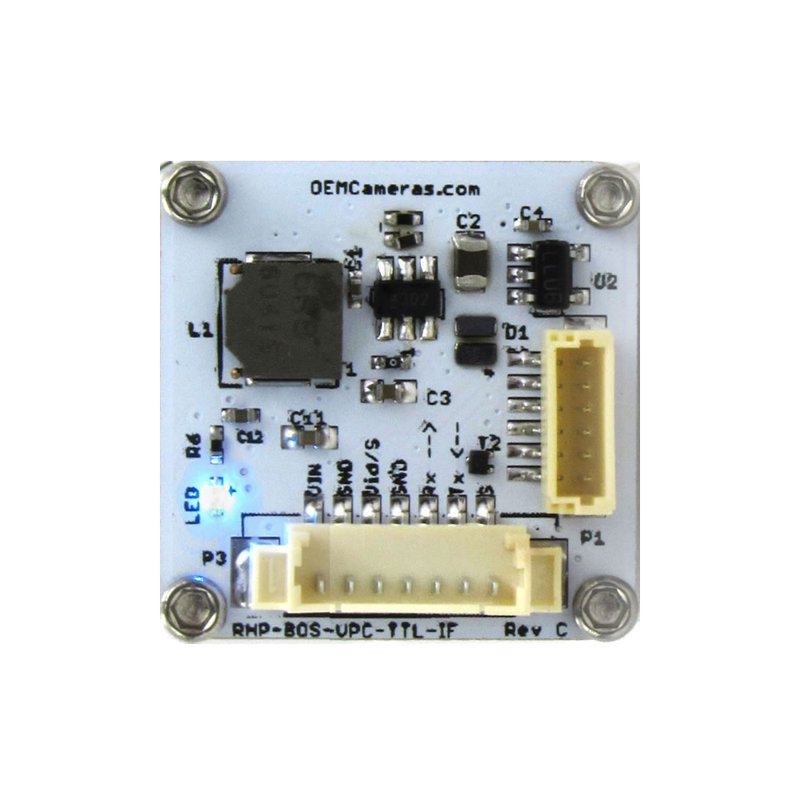

Either video output can be changed to provide Sync Input/Output, via a jumper on the back of the RHP-VPC-TTL Board.
Control is maintained over USB or 3.3V TTL signals. This makes TTL Support available for any project integration.
*Please Note: External Sync is disabled on Boson <9 Hz Cameras.
The use of external sync on these cameras is not supported because pulses cannot be correlated to a specific output frame because of the way the reduced frame rate video is created. If attempted, the camera will reject commands to begin external sync mode.

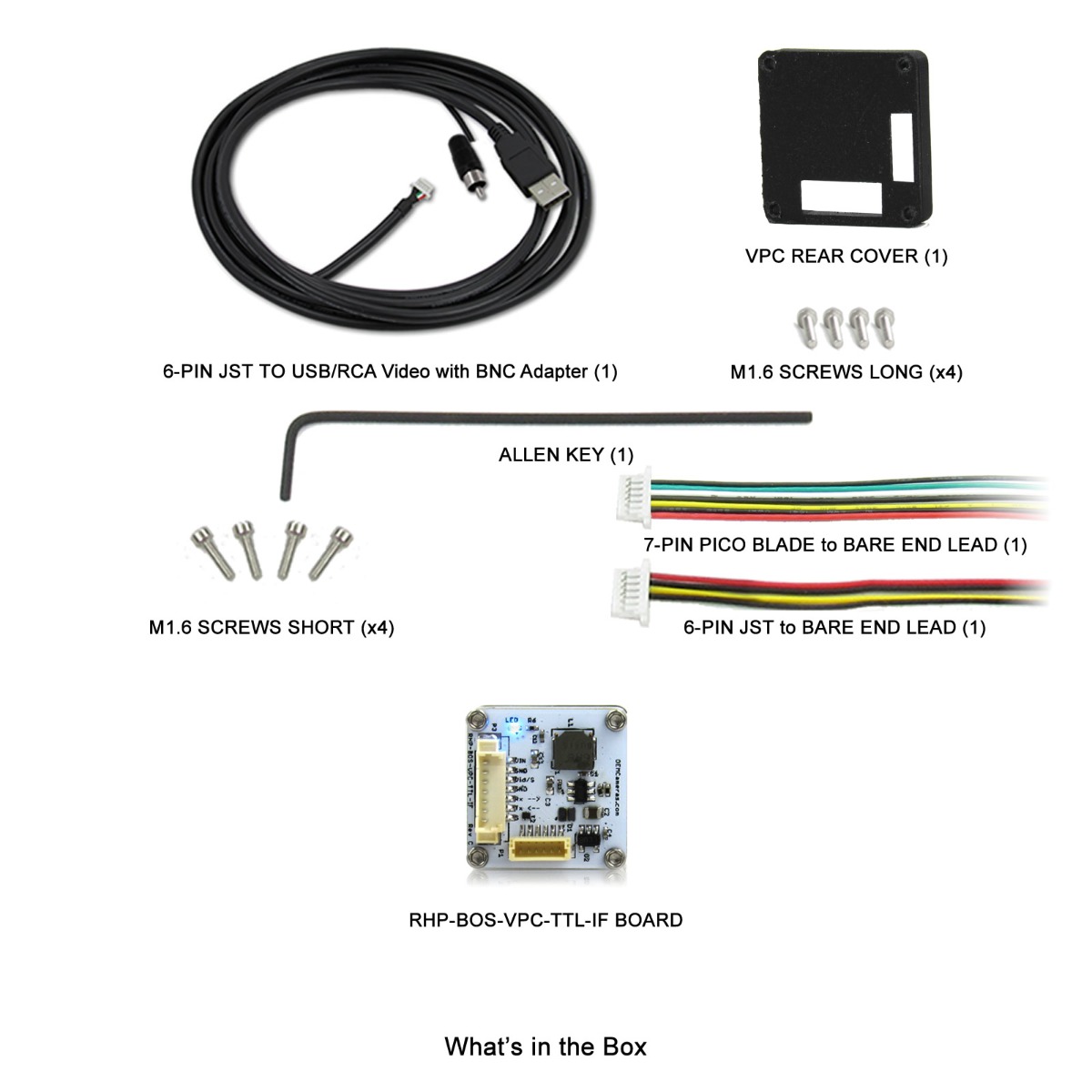

This kit includes:
- 6-PIN JST to USB/RCA Video cable (1)
- 6-PIN JST to Bare End Leads (1)
- 7-PIN PICO Blade to Bare End Leads (1)
- M1.6 6mm Screws (4)
- M1.6 10mm Screws (4)

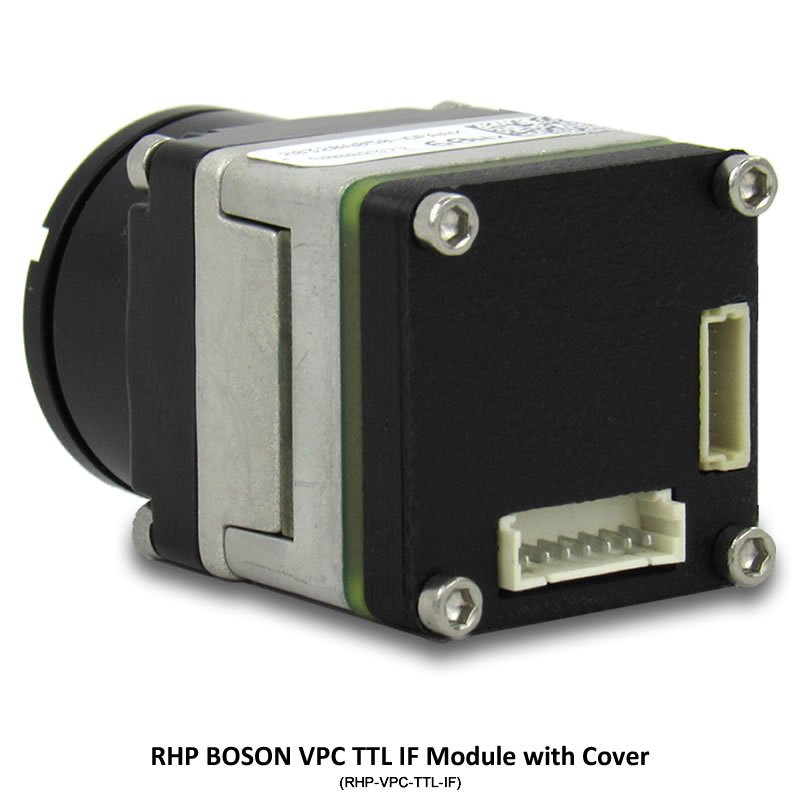

- Rear Cover for VPC-TTL Board (1)
- Allen Key (1)
- RHP VPC-TTL-IF Board (1)
- Quick Start Guide (1)
| Power Requirements: | 5 Volts DC – 26 Volts DC |
| Power Dissipated: | Avg. 0.84W – Max. 2W |
| Dimensions: | 21mm x 21mm |
| Weight: | 3 grams |
| Control: | USB 2.0 and/or 3.3V TTL (1.8V Logic Available) |
| Video Output: | NTSC 30Hz / PAL 25Hz |
| Sync Output: (if configured) | Master/Slave |
| Power | |
|---|---|
| Power Dissipation | |
| Dimensions | |
| Weight | |
| Control Channels | |
| Video Output | |
| Video Output Type |
USB |
| Voltage Input |
5-26 Volts DC |
- RHP-BOS-TTL-IF
- RHP-BOS-CL-SY-IF
Synchronization |
$149.00
RHP-BOS-TTL-IF
|
$399.00
RHP-BOS-CL-SY-IF
|
Purpose |
Video, Power, Communication | Video, Power, Communication |
Power |
5 to 26Volts DC Input | 5 to 26Volts DC Input +Multiple Power Inputs |
Reverse Polarity Protected |
||
Connection |
USB or TTL Communication | Master/Slave Sync Option +3.3V TTL/UART Control |
Outputs |
2 Composite Video Outputs | Camera Link SDR-26 Base Mode Video Output |
Video Support |
Stream Video to PC via USB | USB Video and Control |
Sync In/Out |
Ext. Video SYNC In/Out Optional | Ext. Video SYNC In/Out Optional |
| RHP-BOS-TTL-IF | RHP-BOS-CL-SY-IF |
