RHPC-HDSDI-2.1E Enclosed Color Board Camera
- 1080p or 720p HD Enclosed Color Board Camera
- Up to 60fps at 720p
- 2.1 Megapixel Exmor SONY CMOS Image Sensor
- M12 Lens Mount included
$299.95
We usually have a majority of these items in stock. Please call or contact us for availability.
Description
Specifications
Downloads
RHPC-HDSDI-2.1E
The RHPC-HDSDI-2.1E is the next generation in high-performance HD compact digital day/night enclosed board cameras. This 2.1 Megapixel board camera boasts a high quality progressive scan Exmor SONY CMOS image sensor. Combined with a beautiful f=3.6, 6, 8mm board lens with M12 Mount, this enclosed board camera captures beautiful images and video
What is 3G-SDI and HD-SDI?
3G-SDI is a successor technology to the well known and popular HD-SDI interface. It uses the same connectors and coaxial cables and is also completely downwards compatible. In a nutshell, it provides an increase in bandwidth which allows both higher resolutions and frame rates through a single connection.
“Traditional” HD-SDI is a global standard, specified in SMPTE292M and allows HD video data to be transmitted as 10bit YUV (correctly: YCbCr) at 1.485 Gbit/s. Ancillary data such as time code and audio are embedded in the signal.
Higher picture quality and frame rates such as RGB 4:4:4 or 50/60p can be realized through dual-link SDI connections. Dual link is also used for Stereo3D playback and record of two separate video streams in full resolution
What is HDMI?
HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device (“the source device”) to a compatible computer monitor, video projector, digital television, or digital audio device.[1] HDMI is a digital replacement for existing analog video standards.
Capture Crisp HD Video & Images up to 60fps
Capture video & images in 1920×1080 (1080p) at 30 frames per second or 1280×720 (720p) at 60 frames per second.
HD SDI Digital Day/Night Board Camera
The RHPC-HDSDI-2.1E is the next generation in high-performance HD compact digital day/night enclosed board cameras.

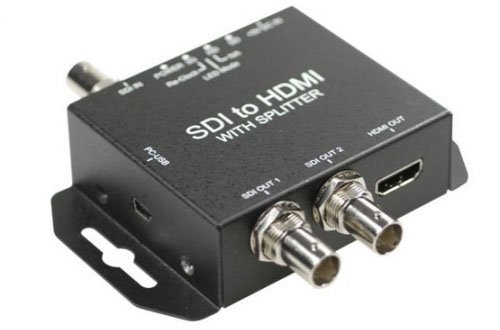

RHP-3GSDI-HDMI-S (sold separately)
3G/HD/SD-SDI to HDMI Video Converter with Scaling
Simultaneous 1 x HDMI and 2 x SDI Output Video Converter
During the integration of your camera you may need a few things along the way. We currently have the which is a 3G/HD/SD-SDI to HDMI Converter with Scaling
- Auto source format detection (3G/HD/SD).
- Built-in hardware scaling engine with anti-aliasing
- Simultaneous 1 x HDMI and 2 x SDI output.
- Splitter function
- Re-clock function (for SDI output)
-
1 Mini-USB port used for:
- Brightness, contrast, hue, saturation, configuration.
- Firmware upgrade.
Designed for Easy Installation

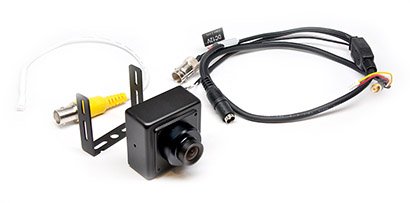

Power, Video cables, and Mounting Bracket are included
